Hobart N50-60 Commercial Planetary Stand Mixer User Manual

1. Ynlieding

This manual provides essential instructions for the safe and efficient operation, setup, maintenance, and troubleshooting of your Hobart N50-60 5-Quart Commercial Countertop Planetary Stand Mixer. Designed for heavy-duty commercial use, this mixer features a robust gear-driven transmission and three fixed speeds, making it suitable for a wide range of mixing applications. Please read this manual thoroughly before operating the mixer.

Figure 1: Hobart N50-60 Commercial Planetary Stand Mixer. This image shows the complete mixer unit with the stainless steel bowl and a whisk attachment.

2. Safety Ynstruksjes

WARNING: To reduce the risk of serious injury, always follow these safety precautions.

• Lês alle ynstruksjes foardat jo de mixer brûke.
• Ensure the mixer is placed on a stable, level, and dry surface to prevent tipping.
• Always unplug the mixer from the electrical outlet before cleaning, assembling, disassembling parts, or performing any maintenance.
• Keep hands, hair, clothing, and utensils away from moving parts during operation to prevent injury. Never use your hands to scrape the bowl while the mixer is running.
• Do not immerse the mixer base in water or other liquids. Clean with a damp allinnich doek.
• Brûk allinne taheaksels en accessoires oanrikkemandearre troch de fabrikant.
• Do not operate the mixer with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Contact qualified service personnel.
• Nauwe tafersjoch is nedich as elk apparaat wurdt brûkt troch of tichtby bern.
• Soargje derfoar dat de macht oanbod oerienkomt mei de voltage specified on the mixer's rating label (100-120V/2.9A or 230V/1.4A).
• Never attempt to bypass safety interlocks or modify the mixer.

figuer 2: Rear view of the mixer, highlighting the power cord connection and a warning label. Always ensure the power cord is in good condition and properly connected.

3. Package Ynhâld

Kontrolearje oft alle items yn it pakket oanwêzich binne:

• Hobart N50-60 Planetary Stand Mixer Unit
• 5-Quart RVS Mixing Bowl
• "D" Wire Whip (Balloon-shaped)
• "B" Flat Beater (Cast Aluminum)
• "ED" Dough Hook (Cast Aluminum)

4. Opsette

1. Utpakke: Helje foarsichtich alle ûnderdielen út 'e ferpakking. Bewarje de ferpakking foar takomstich ferfier of opslach.
2. Pleatsing: Position the mixer on a sturdy, level, and dry countertop or work surface capable of supporting its weight (approximately 55 lbs). Ensure adequate clearance around the mixer for ventilation and operation.
3. Bowl Installation:
   • Lower the bowl support by pulling the hand lever located on the side of the mixer downwards.
   • Place the 5-quart stainless steel mixing bowl onto the bowl support, aligning the pins on the support with the slots on the bowl.
   • Raise the bowl support by pushing the hand lever upwards until it locks securely into place.
4. Taheaksel ynstallaasje:
   • Ensure the mixer is OFF and unplugged.
   • Slide the desired attachment (wire whip, flat beater, or dough hook) onto the agitator shaft until it clicks into place. Rotate the attachment slightly if needed to engage the pin.
   • Gently pull down on the attachment to ensure it is securely locked.
5. Power Connection: Plug the mixer's power cord into a grounded electrical outlet that matches the mixer's voltage easken.

figuer 3: Front view of the mixer with the whisk attachment and stainless steel bowl correctly installed. Note the bowl lift lever on the right side.

figuer 4: Close-up view of the 5-quart stainless steel bowl and the whisk attachment, showing how they connect to the mixer head.

5. Bedriuwsinstruksjes

1. Yngrediïnten tafoegje: With the mixer OFF and the bowl in the raised position, add your ingredients to the 5-quart stainless steel mixing bowl.
2. Selektearje snelheid: The N50-60 features a three-speed transmission. Use the speed selector lever (typically labeled 1, 2, 3) to choose the desired mixing speed. It is generally recommended to start at a lower speed and gradually increase as needed.
3. Start Mixer: Press the large ON button to start the mixer.
4. Monitormiksing: Observe the mixing process. If necessary, stop the mixer, scrape down the sides of the bowl, and restart.
5. Stop Mixer: Press the large OFF button to stop the mixer.
6. Fuortsmite de kom en it taheaksel: Once mixing is complete, ensure the mixer is OFF. Lower the bowl support using the hand lever. Carefully remove the attachment by pushing it upwards and then sliding it off the agitator shaft. Then, remove the mixing bowl.
7. Manuele reset-skeakel: In case of an overload or electrical issue, the mixer may automatically shut off. Locate the manual reset switch (often a small button on the mixer body) and press it to reset the circuit. If the issue persists, unplug the mixer and contact service.

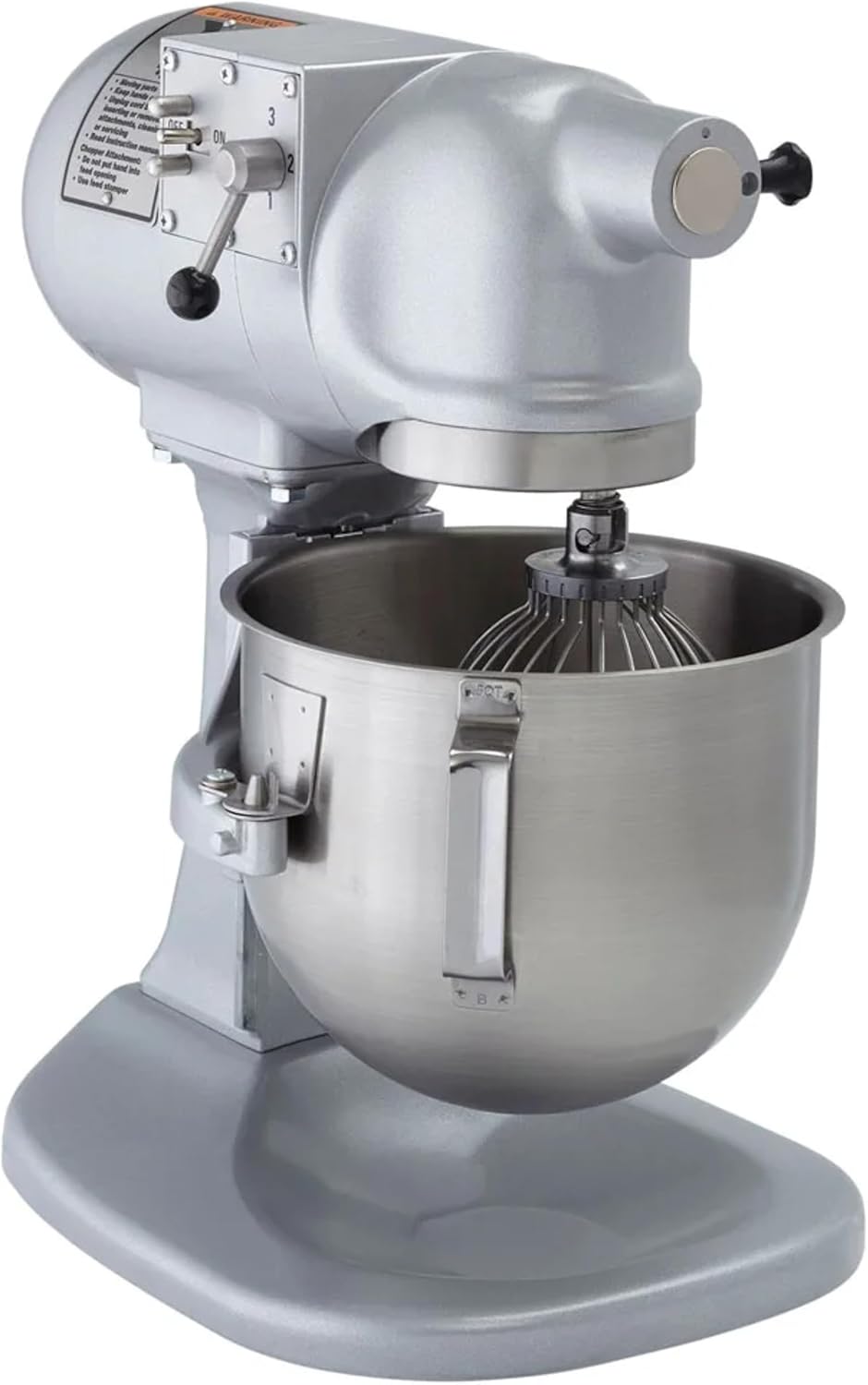

figuer 5: Side view of the mixer, illustrating the location of the speed selector lever (1, 2, 3) and the prominent ON/OFF buttons for easy operation.

6. Underhâld en Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Hobart N50-60 mixer.

6.1 Daily Cleaning

• Ferwiderje de mixer altyd foardat jo skjinmeitsje.
• Mingkom en taheaksels: The 5-quart stainless steel mixing bowl and the included attachments (wire whip, flat beater, dough hook) are dishwasher safe. Alternatively, wash them with warm, soapy water, rinse thoroughly, and dry immediately.
• Mixer lichem: Wiskje de bûtenkant fan 'e mixer mei adamp cloth. For stubborn stains, use a mild detergent. Avoid abrasive cleaners or scouring pads, as these can damage the Hobart gray hybrid powder enamel finish. Ensure no water enters the motor housing or electrical components.
• Taheaksel Hub: Clean the attachment hub area to prevent food buildup.

6.2 Algemiene Ûnderhâld

• Periodically inspect the power cord for any signs of damage. If damaged, it must be replaced by a qualified technician.
• Ensure all moving parts operate smoothly. Do not attempt to lubricate internal components unless specified by the manufacturer.
• Keep the mixer in a clean, dry environment when not in use.

7. Probleemoplossing

This section addresses common issues you might encounter with your Hobart N50-60 mixer.

8. Spesifikaasjes

Figure 6: Dimensional diagram of the Hobart N50-60 mixer, showing its height (17"), width (11"), and depth (15").

9. Warranty Information

Warranty details for the Hobart N50-60 Commercial Planetary Stand Mixer are typically provided with your purchase documentation or can be obtained directly from the manufacturer's official webside. Bewarje jo bewiis fan oankeap foar garânsjeclaims.

10. Stipe

For technical assistance, spare parts, or service inquiries, please contact Hobart customer support. You can typically find contact information on the official Hobart webwebside of fia jo autorisearre dealer.
