1. Ynlieding
The Vivanco PAU 1501 is a versatile universal power supply designed for operating and charging a wide range of electronic devices, including both USB and non-USB compatible equipment. This manual provides essential information for the safe and efficient use of your power supply.
2. Safety Ynstruksjes
Please read these safety instructions carefully before using the device. Failure to follow these instructions may result in electric shock, fire, or damage to the product.
- Do not expose the power supply to rain, moisture, or extreme temperatures.
- Ensure the power supply is disconnected from the mains before cleaning or if it will not be used for an extended period.
- Iepenje de c netasing of the power supply. There are no user-serviceable parts inside.
- Use only the provided or approved connectors.
- Ferifiearje de voltage and polarity requirements of your device before connecting it to the power supply. Incorrect settings can damage your device.
- Hâld bûten it berik fan bern.
3. Package Ynhâld
The Vivanco PAU 1501 package typically includes:
- 1x Vivanco PAU 1501 Universal Power Supply Unit
- 8x Non-USB Output Connectors (various sizes)
- 3x USB Output Connectors (USB A, Mini USB, Micro USB)
- 1x Instruction Manual
4. Produkt Overview
The Vivanco PAU 1501 features a compact design with a selectable voltage switch and multiple interchangeable output connectors to ensure compatibility with a wide range of devices.

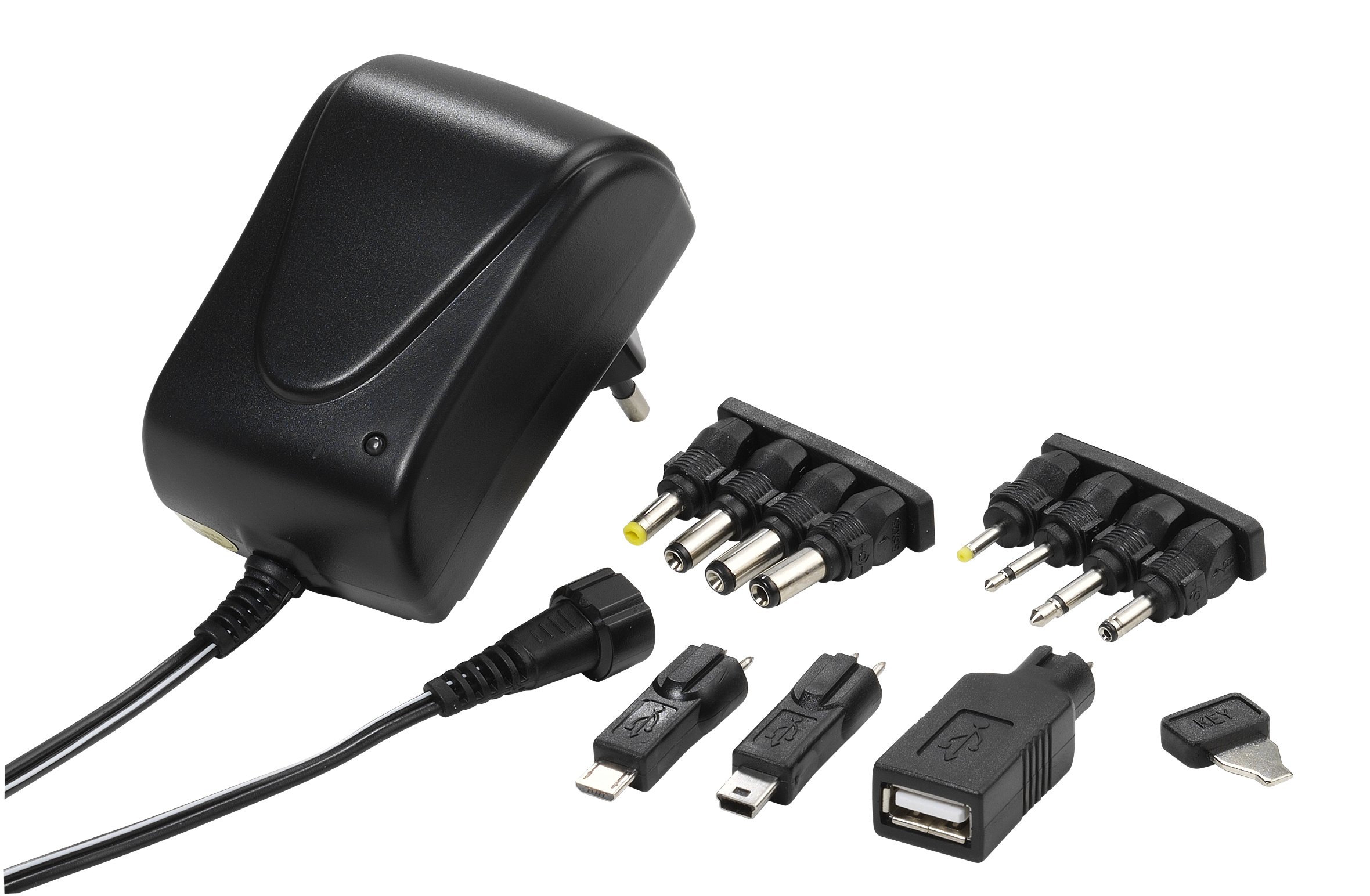

Image 1: The Vivanco PAU 1501 universal power supply unit shown with a selection of its interchangeable output connectors. The main unit features a voltage selector switch and an input for the AC power cable.
Key komponinten:
- Haad ienheid: Contains the transformer, voltage selector, and output port.
- Voltage Keuzeschakelaar: Maakt seleksje fan útfiervolume moogliktages (3.0V, 4.5V, 5.0V, 6.0V, 7.5V, 9.0V, 12V DC).
- Utfier kabel: Connects to the interchangeable tips.
- Interchangeable Connectors: A variety of tips for different devices, including USB A, Mini USB, Micro USB, and 8 non-USB tips (2.5mm, 3.5mm, 5.5x2.1mm, 5.5x2.5mm, 3.5x1.35mm, 4.0x1.7mm, 5.5x1.5mm, 2.35x0.75mm).
- Power Plug: Type C/EF – 2 pins (European/hybrid FR-DE plug) for mains connection.
5. Opsette
Before connecting the power supply to your device, follow these steps:
- Identify Device Requirements: Check your device's manual or specifications for its required input voltage (V) and current (mA or A). Also, determine the correct connector type and polarity (usually indicated by a diagram).
- Select Correct Voltage: Sykje de voltage selector switch on the Vivanco PAU 1501. Using a small tool (e.g., a coin or screwdriver), carefully rotate the switch to match your device's required voltage (bygelyks, 5.0V, 9.0V, 12V).
- Choose Correct Connector: Select the appropriate output connector tip that fits your device's power input port. For USB devices, choose USB A, Mini USB, or Micro USB. For non-USB devices, select one of the 8 barrel or jack connectors.
- Attach Connector: Firmly attach the chosen connector tip to the output cable of the power supply. Ensure it is securely seated.
6. Bedriuwsinstruksjes
Once setup is complete, you can begin using your universal power supply:
- Ferbine mei apparaat: Plug the selected connector tip into your electronic device's power input port.
- Ferbine mei it net: Insert the power supply's main plug into a suitable wall socket (100-240V AC, 50/60Hz).
- Power On: Your device should now receive power or begin charging. Some devices may have an indicator light.
- Ferbine: To disconnect, first unplug the power supply from the wall socket, then remove the connector from your device.
Wichtich: Soargje der altyd foar dat it juste folume istage and connector are selected before plugging into your device to prevent damage.
7. Underhâld
To ensure the longevity and proper functioning of your Vivanco PAU 1501 power supply, follow these maintenance guidelines:
- Reiniging: Disconnect the power supply from the mains before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or solvents.
- Opslach: Store the power supply and its connectors in a cool, dry place away from direct sunlight and moisture when not in use.
- Kabelsoarch: Avoid bending or kinking the power cable excessively. Do not place heavy objects on the cable.
- Ynspeksje: Periodically inspect the power supply and cables for any signs of damage, such as frayed wires or cracked casings. If damage is found, discontinue use immediately.
8. Probleemoplossing
If you encounter issues with your Vivanco PAU 1501, refer to the following common problems and solutions:
| Probleem | Mooglike oarsaak | Oplossing |
|---|---|---|
| Apparaat giet net oan/opladen. | Ferkearde voltage selektearre. Incorrect connector tip. Losse ferbining. Wall socket not active. Apparaat flater. |
Ferifiearje de voltage setting matches your device's requirements. Ensure the correct connector tip is used and securely attached. Check all connections are firm. Test the wall socket with another appliance. Test the device with its original power supply, if available. |
| Power supply feels hot. | Normale operaasje ûnder lading. Overload. Min fentilaasje. |
In bytsje waarmte is normaal. As it te hjit is, meitsje it dan fuortendaliks los. Ensure the device's current draw does not exceed 1500mA (1.5A). Soargje derfoar dat de stroomfoarsjenning yn in goed fentilearre gebiet is. |
| Sparking when plugging into wall socket. | Normal inrush current. Faulty socket or plug. |
Minor sparking is common. If it's excessive or persistent, discontinue use. Check the wall socket and power supply plug for damage. Consult a qualified electrician if necessary. |
If the problem persists after trying these solutions, please contact Vivanco customer support.
9. Spesifikaasjes
| Eigenskip | Detail |
|---|---|
| Model Number | PAU 1501 |
| Ynfier Voltage | 100-240 V AC ~ 50/60 Hz, 0.35 A max. |
| Utfier Voltages (DC) | 3.0V, 4.5V, 5.0V, 6.0V, 7.5V, 9.0V, 12V (selectable) |
| Maksimum útfier Strom | 1500 mA (1.5 A) max. |
| Maksimum útfier Power | 18 W |
| No-Load Power Consumption | < 0.3 W |
| Effisjinsje | Max. 83% |
| Útfier Anschlüsse | 8 non-USB tips (2.5mm, 3.5mm, 5.5x2.1mm, 5.5x2.5mm, 3.5x1.35mm, 4.0x1.7mm, 5.5x1.5mm, 2.35x0.75mm), 3 USB tips (USB A, Mini USB, Micro USB) |
| Plug Type | Type C/EF – 2 pins (European/hybrid FR-DE) |
| Kleur | Swart |
| Special Feature | Portable, Travel-friendly |
10. Garânsje en stipe
Specific warranty information for the Vivanco PAU 1501 is not provided in the product details. Please refer to the warranty card included with your purchase or contact your retailer for details regarding warranty terms and conditions.
For technical support or further inquiries, please visit the official Vivanco website of nim kontakt op mei harren klanteservice ôfdieling.
Fabrikant: Vivanco
