Wichtige Safety Ynstruksjes
Lês dizze ynstruksjes goed troch foar ynstallaasje en gebrûk. Bewarje dizze hantlieding foar takomstige referinsje.
- Soargje derfoar dat de elektryske foarsjenning oerienkomt mei it typeplaatje op it apparaat.
- Dit apparaat is net bedoeld foar gebrûk troch persoanen (ynklusyf bern) mei fermindere fysike, sintúchlike of mentale kapasiteiten, of gebrek oan ûnderfining en kennis, útsein as se hawwe krigen tafersjoch of ynstruksje oangeande it brûken fan it apparaat troch in persoan ferantwurdlik foar harren feiligens.
- Bern moatte tafersjoch wurde om te soargjen dat se net mei it apparaat boartsje.
- Net flambearje ûnder de kap.
- Always ensure adequate ventilation in the room when the range hood is used simultaneously with appliances burning gas or other fuels.
- Regularly clean the grease filters according to the instructions to prevent fire hazards.
- Koppel it apparaat los fan 'e stroomfoarsjenning foardat jo skjinmeitsje of ûnderhâlde.
- Do not operate the appliance if the power cord or plug is damaged. Contact qualified service personnel.
Produkt oerview
The Klarstein UW60BL is a 60 cm undermount extractor hood designed for small to medium-sized kitchens. It effectively removes air and cooking vapors from the hob area. This model supports both exhaust air and recirculation modes.
Image: Klarstein UW60BL Extractor Hood installed above a cooktop, showcasing its sleek black design in a modern kitchen setting.

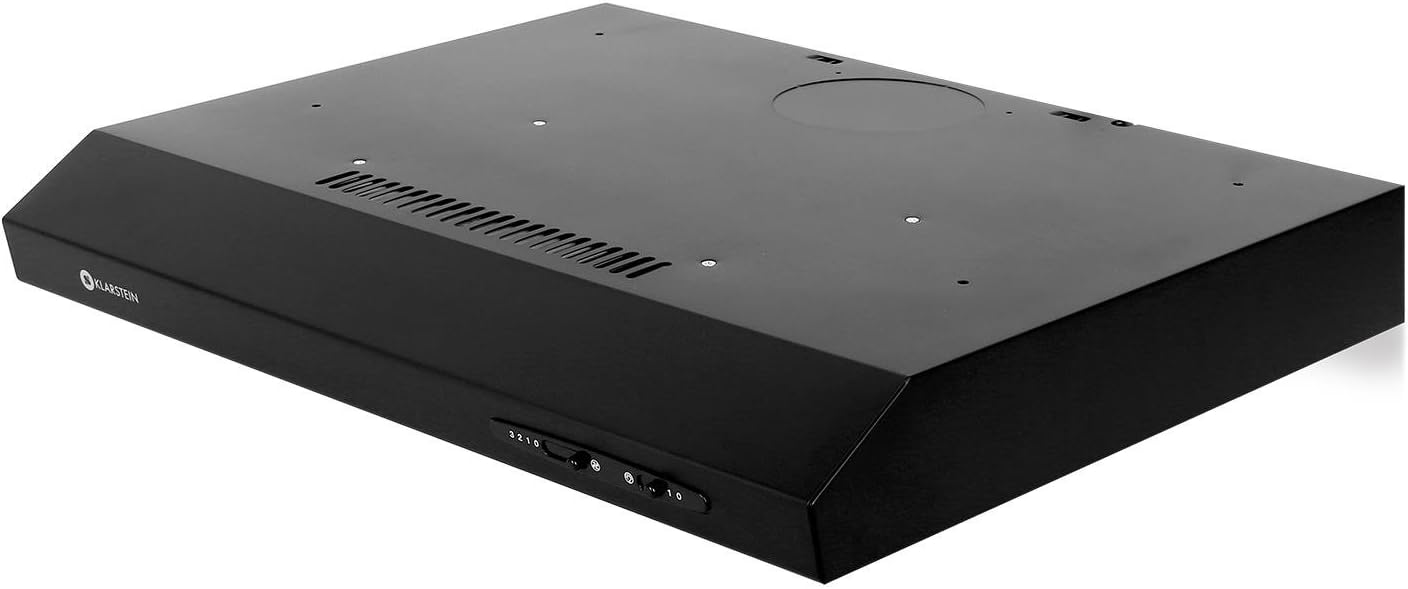

Image: Angled top-down view of the Klarstein UW60BL Extractor Hood, highlighting the exhaust vents and overall compact design.
Key Features:
- 3 Performance Levels: Adjustable fan speeds for varying cooking intensity.
- Hege prestaasjes: Up to 210 m³/h max. exhaust air performance.
- LED ferljochting: Yntegreare LED lamp to illuminate the cooking area.
- Alsidige ynstallaasje: Can be mounted to the wall or under a kitchen cabinet.
- Materiaal: Stainless Steel construction with a brushed finish.
Opset en ynstallaasje
The Klarstein UW60BL extractor hood is designed for easy installation, either directly to a wall or underneath a kitchen cabinet. A screw set for mounting is included with the product.
Ofmjittings:
Image: Technical drawing illustrating the dimensions of the extractor hood. The overall dimensions are approximately 25.98"D x 21.1"W x 5.04"H (66cm D x 53.6cm W x 12.8cm H).
- Produkt Ofmjittings: 25.98" D x 21.1" W x 5.04" H
- Montage Type: Wall Mount or Under Cabinet
Ynstallaasjestappen (Algemiene rjochtlinen):
- Tarieding: Ensure the installation area is clear and that there is access to a power outlet. Mark the drilling points for mounting based on the hood's dimensions and mounting holes.
- Montage: Securely attach the hood to the wall or under the cabinet using the provided screws and appropriate wall plugs. Ensure it is level and stable.
- Kanaallieding (as fan tapassing): If using exhaust air mode, connect the exhaust ducting to the hood's outlet and route it to the outside. Ensure a tight seal to prevent air leaks.
- Recirculation (if applicable): If using recirculation mode, ensure carbon filters are installed (sold separately for some models) and that the air outlet is unobstructed for filtered air to return to the kitchen.
- Elektryske ferbining: Ferbine de macht cord oan in geskikt elektryske outlet.
Ofbylding: Efterkant view of the extractor hood, illustrating the mounting points and the power cable connection for installation.
Operaasje
The Klarstein UW60BL extractor hood features push-button controls for fan speed and lighting.

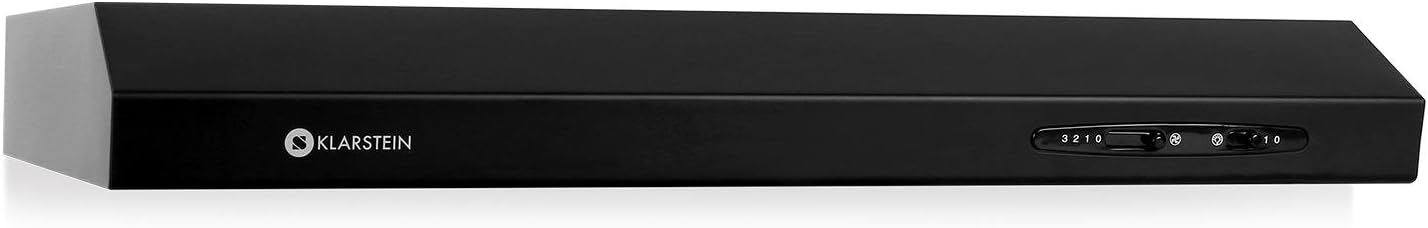

Image: Close-up of the control panel, showing the push buttons for fan speed (0, 1, 2, 3) and light control.
Fan Speed Control:
- De kap biedt 3 performance levels to adjust the extraction power.
- Use the push buttons to select the desired speed:
- Nivo 1: For light cooking, simmering.
- Nivo 2: For normal cooking, multiple pans.
- Nivo 3: For heavy frying, grilling, or strong odors. This level provides up to 210 m³/h exhaust air performance.
- Press '0' to turn off the fan.
LED ferljochting:
- De yntegreare LED lamp illuminates the cooking area.
- Press the light button (often marked with a light bulb symbol) to turn the light on or off.
Bedriuwsmodi:
- Exhaust Air Mode: Vapors are extracted and vented outside through a duct.
- Recirculation Mode: Vapors are filtered through a grease filter and an optional carbon filter (for odors), then returned to the kitchen. This mode is suitable when external venting is not possible.
Ûnderhâld en Cleaning
Regular maintenance ensures optimal performance and extends the lifespan of your extractor hood. Always disconnect the appliance from the power supply before cleaning or maintenance.
Reiniging fan fetfilter:
Ofbylding: Underkant view of the extractor hood, clearly showing the removable mesh grease filter and the integrated LED light.
- The hood is equipped with mesh filters to trap grease.
- These filters should be cleaned regularly (approximately every 2-4 weeks, depending on usage).
- To remove: Locate the release latches or clips on the filter, push or pull them to release, and carefully lower the filter.
- Clean the filters by hand in warm soapy water or in a dishwasher on a low-temperature cycle. Ensure they are completely dry before re-installing.
- Re-install the filters by aligning them and pushing the latches back into place until they click.
Eksterne reiniging:
- Clean the exterior surfaces with a soft cloth and a mild, non-abrasive detergent.
- Brûk gjin abrasive reinigingsmiddels, stielwol of agressive gemikaliën, om't dizze de roestfrij stielen finish kinne beskeadigje.
- Droechwrijven mei in skjinne doek om wetterflekken te foarkommen.
Carbon Filter Replacement (for Recirculation Mode):
- If operating in recirculation mode, carbon filters (not included with all models) are used to remove odors.
- These filters cannot be washed and must be replaced periodically (typically every 3-6 months, depending on usage).
- Refer to your specific carbon filter instructions for replacement procedures.
Troubleshooting
Before contacting customer support, please check the following common issues and solutions:
| Probleem | Mooglike oarsaak | Oplossing |
|---|---|---|
| Kap wurket net | Gjin stroomfoarsjenning | Check if the plug is properly inserted and the power switch is on. Check the circuit breaker. |
| Minne ekstraksjeprestaasjes | Grease filters are clogged | Meitsje de fetfilters skjin of ferfange se. |
| Minne ekstraksjeprestaasjes | Carbon filters are saturated (recirculation mode) | Ferfange de koalstoffilters. |
| Minne ekstraksjeprestaasjes | Ducting obstruction or improper installation | Check ducting for blockages or kinks. Ensure proper sealing. |
| Ljochten wurkje net | LED lamp mislearring | Contact customer support for replacement or service. |
| Oermjittich lûd | Losse ûnderdielen of ferkearde ynstallaasje | Check that all mounting screws are tight. Ensure no objects are obstructing the fan. |
Spesifikaasjes
| Eigenskip | Detail |
|---|---|
| Merk | KLARSTEIN |
| Model Number | UW60BL |
| Produkt Ofmjittings (D x B x H) | 25.98" D x 21.1" W x 5.04" H |
| Kleur | Swart |
| Materiaal Type | Rustfrij stiel |
| Special Feature | Re-Circulation (also supports exhaust air) |
| Finish Type | Borstel |
| Luchtstreamkapasiteit | 210 kubike meters per oere |
| Noise Level | 71 Desibel |
| Mounting Type | Wall Mount, Under Cabinet |
| Soart kontrôles | Drukknop |
| Voltage | 230 Volt |
| Oantal snelheden | 3 |
| Ljocht Boarne | LED |
| Wattage | 115.00 W |
| Filtertype | Mesh (Grease Filter) |
| Ventilaasje Type | Ductless (Recirculation), Ducted (Exhaust) |
| Item Gewicht | 4.3 kilogram |
| Ynbegrepen komponinten | LED Lights, Screw Set for Mounting |
Disposal ynformaasje
Do not dispose of this appliance with household waste. It must be disposed of at a designated collection point for the recycling of electrical and electronic appliances. For more information on where to drop off your waste equipment for recycling, please contact your local city office, your household waste disposal service, or the shop where you purchased the product.
Garânsje en stipe
For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For technical support or service inquiries, please contact Klarstein customer service through their official webside of de kontaktgegevens dy't jo yn jo oankeapdokumintaasje hawwe jûn.
