Hayward W3C5030 SwimClear Cartridge Pool Filter 525 Sq. Ft. User Manual

1. Ynlieding en oerview

The Hayward W3C5030 SwimClear Cartridge Pool Filter is designed to provide efficient and reliable filtration for in-ground pools and spas. This filter system utilizes multiple reusable polyester cartridge elements to capture dirt and debris, ensuring crystal clear water with minimal maintenance. Its design prioritizes hydraulic performance and energy efficiency, making it an ideal choice for maintaining a clean and healthy swimming environment.

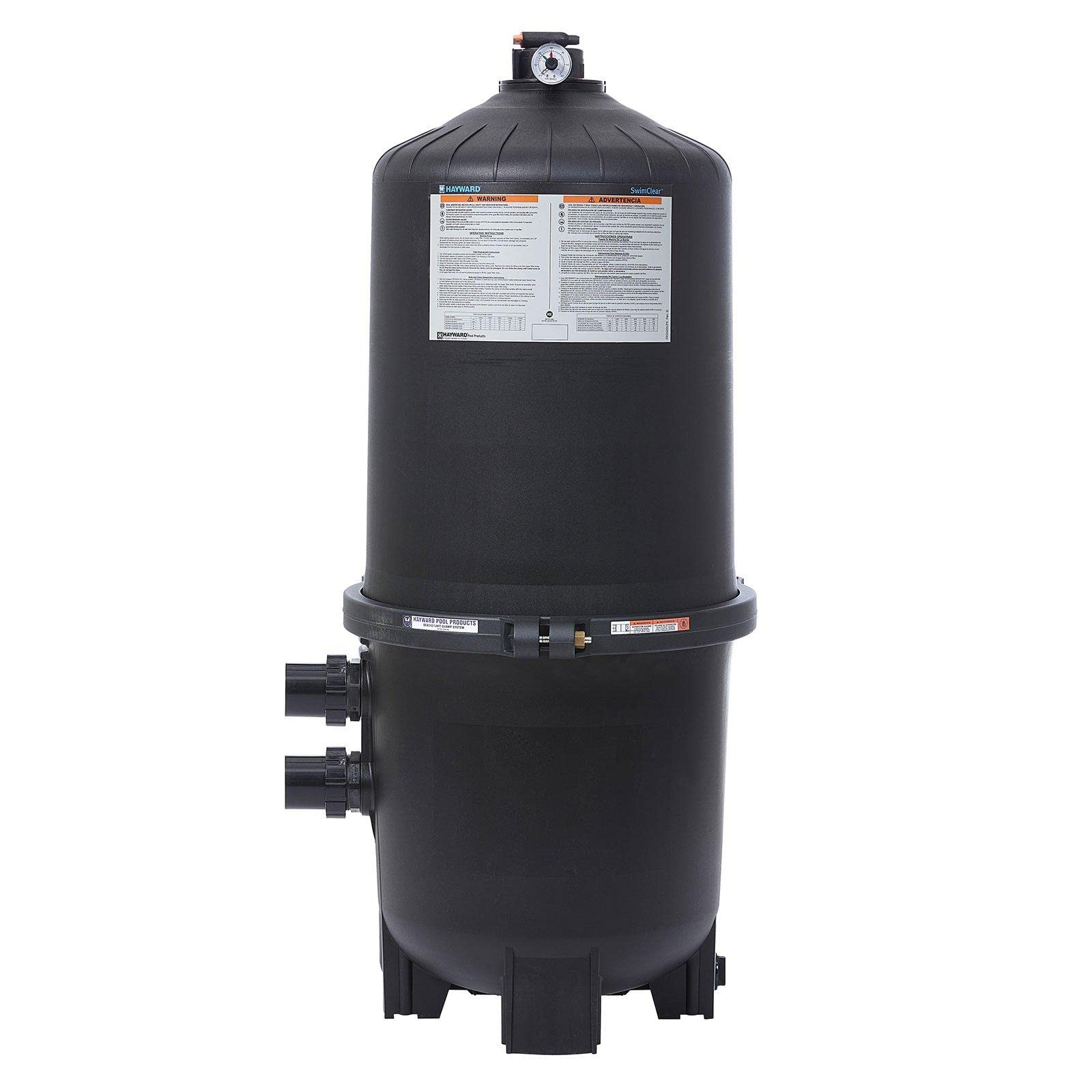

Figure 1: Hayward W3C5030 SwimClear Cartridge Pool Filter.

2. Key Features

• Economical Performance: Provides excellent filtration and hydraulic performance, contributing to reduced operating costs.
• No Backwashing Required: Features cleanable cartridge elements, eliminating the need for traditional backwashing and conserving water.
• Duorsum ûntwerp: Filter tanks are constructed from robust materials to withstand demanding applications and environmental conditions.
• Maklike tagong: A heavy-duty, tamper-proof, single-piece flange clamp allows quick access to internal components without disturbing plumbing connections.
• Rapid Air Release: Equipped with a high-capacity manual air relief valve for quick and easy air release with a quarter-turn.
• High Filtration Area: Offers a 525 sq. ft. filtration area for extended filter cycles and superior water clarity.

Figure 2: Benefits of the SwimClear Cartridge Filter.

3. Opset en ynstallaasje

Proper installation is crucial for the optimal performance and longevity of your Hayward SwimClear filter. It is recommended that installation be performed by a qualified pool professional.

3.1 Pre-ynstallaasje kontrôles

• Ensure the filter is placed on a level, solid surface capable of supporting its weight when filled with water.
• Verify that all necessary plumbing connections (CPVC 2" or 2-1/2" union connections) are available and correctly sized.
• Confirm that the installation site allows for adequate clearance around the filter for maintenance and servicing.

3.2 ynstallaasjestappen

1. Plak it filter: Place the filter tank in its final operating position.
2. Loodgieters verbinden: Securely attach the inlet and outlet plumbing to the filter's union connections. Ensure all connections are watertight.
3. Ynstallearje Cartridges: Open the filter tank by releasing the flange clamp. Carefully insert the cartridge elements, ensuring they are properly seated within the tank.
4. Befeiligje de tank: Replace the filter tank lid and securely fasten the heavy-duty, single-piece flange clamp.
5. Folje mei wetter: Slowly fill the pool and filter system with water, allowing air to escape through the manual air relief valve.
6. Start pomp: Once the system is full and all air is purged, start the pool pump. Check for any leaks.

Figure 3: Key Installation Tips.

4. Bedriuwsinstruksjes

The Hayward SwimClear filter is designed for continuous operation to maintain optimal water quality. Once installed and the pump is running, the filter will begin circulating and cleaning your pool water.

• Initial Pressure Reading: Note the initial pressure gauge reading immediately after starting the filter with clean cartridges. This is your baseline operating pressure.
• Monitor druk: Regularly check the pressure gauge. An increase of 8-10 PSI above the initial clean pressure indicates that the cartridges need cleaning.
• Air Relief: If the pump loses prime or air enters the system, use the manual air relief valve to purge air until a steady stream of water emerges.

5. Underhâld

Regular maintenance of your SwimClear filter ensures efficient operation and extends the life of the cartridge elements. Unlike sand filters, no backwashing is required, saving water and effort.

5.1 Cartridge Cleaning

1. Pomp útskeakelje: Always turn off the pool pump and relieve any pressure in the system before opening the filter.
2. Open Filter: Release the flange clamp and carefully remove the filter lid.
3. Remove Cartridges: Lift out the dirty cartridge elements.
4. Rinse: Use a garden hose with a spray nozzle or a specialized cartridge cleaning tool to thoroughly rinse debris from between the pleats of each cartridge. For deeper cleaning, use a chemical filter cleaner as directed by the product manufacturer.
5. Ynspektearje: Check cartridges for any damage, tears, or excessive wear. Replace if necessary.
6. Op 'e nij ynstallearje: Place the clean cartridges back into the filter tank, ensuring they are correctly seated.
7. Close Filter: Replace the lid and secure the flange clamp.
8. Systeem opnij starte: Follow the operating instructions to restart the pump and check for leaks.

Cartridges should be replaced every 1-2 years on average, depending on usage and water conditions.

Figure 4: Essential Maintenance Tips.

Figuer 5: Ynterne view of the filter with cartridge elements.

6. Probleemoplossing

This section provides general guidance for common issues. For detailed troubleshooting, refer to the complete product manual or contact Hayward customer support.

7. Spesifikaasjes

• Merk: Hayward
• Model Oantal: W3C5030
• Produkt Ofmjittings: 24"L x 24"B x 46.5"H
• Foarm: Plein
• Kleur: Griis
• Materiaal: Polyester
• Ynbegrepen komponinten: Filter Cartridge, Filter Tank, Union Connections
• UPC: 610377387927
• Item Gewicht: 92 pûn sterling
• Filtraasjegebiet: 525 sq. Ft.

Figure 6: Performance Data for SwimClear Filters (Model C5030 corresponds to 525 Sq. Ft.).

8. Garânsje en stipe

For specific warranty information, please refer to the warranty card included with your product or visit the official Hayward website. For technical support, replacement parts, or service inquiries, please contact Hayward customer service directly.

Hayward Official Website: www.hayward-pool.com
