Ynlieding
Tankewol foar de oankeapasing the Lepro USB Rechargeable LED Lantern. This manual provides detailed instructions for the safe and efficient use of your new lantern. Please read this manual thoroughly before operation and retain it for future reference.
Image: The Lepro USB Rechargeable LED Lantern, highlighting its compact design and powerful light output.
Produkt oerview
Key Features
- Ultrahege helderheid: Up to 1100 lumens with a 360° wide beam angle, suitable for illuminating entire rooms or large outdoor areas.
- USB Rechargeable & Mobile Power Bank: Equipped with a large-capacity rechargeable battery. Easily charged via the included Type-C USB cable. Features a USB output port to charge smartphones and other USB devices.
- Mearsidige ljochtmodi: Offers 4 lighting modes: Daylight (1000 lumens), Warm White (300 lumens), Cool White (1100 lumens), and Flash (1100 lumens).
- Stepless Dimming & Color Temperature Adjustment: Long-press the power button to seamlessly adjust brightness and color temperature to suit your environment and needs.
- Duorsum en wetterbestindich: IPX4 water resistance protects against splashes from any direction, making it suitable for various weather conditions (excluding heavy rain). Features shock resistance, heat resistance, and abrasion resistance for long-lasting use.
- Kompakt en draachber ûntwerp: Measures 9.5cm x 8.8cm x 18.4cm and weighs approximately 590g. Features a non-slip rubber base and a bottom hook for versatile placement and hanging.
Components
The package includes the Lepro USB Rechargeable LED Lantern and a Type-C USB charging cable.
Image: The Lepro USB Rechargeable LED Lantern with its included Type-C charging cable.
Opsette
Before first use, fully charge the lantern. Connect the included Type-C USB cable to the lantern's charging port and a compatible USB power adapter (DC5V, not included). The charging indicator will show the charging status.
Operating Instructions
Power On / Off en Mode Seleksje
- Power On: Druk koart op de macht knop om de lantearn yn te skeakeljen.
- Modi feroarje: Short press the power button repeatedly to cycle through the 4 lighting modes: Daylight (1000lm) → Warm White (300lm) → Cool White (1100lm) → Flash (1100lm).
- Útskeakelje: After cycling through all modes, another short press will turn off the lantern. Alternatively, if the lantern has been in a specific mode for more than 5 seconds, a single short press will turn it off.
Image: The lantern displaying its various light modes and the stepless dimming feature.
Stepless Dimming and Color Temperature Adjustment
While the lantern is on, long-press the power button to activate stepless dimming and color temperature adjustment. The brightness and color temperature will gradually change. Release the button when you reach your desired setting. Long-press again to change in the opposite direction.
Video: Demonstration of the Lepro USB Rechargeable LED Lantern's operation, including power on/off, mode switching, and stepless dimming/color temperature adjustment.
Lantern opladen
To charge the lantern, connect the provided Type-C USB cable to the lantern's Type-C input port and a USB power source (e.g., wall adapter, power bank, computer USB port). The charging indicator will illuminate to show charging status. Ensure the input voltage is DC5V. Do not use chargers with higher voltage.
Mobile Power Bank Function
The lantern can also function as a mobile power bank to charge other devices. Connect your device's USB charging cable to the lantern's USB output port. This feature is useful in emergencies or when away from power outlets.
Image: The lantern being used to charge a smartphone, demonstrating its mobile power bank capability.
Mounting opsjes
The lantern is designed for versatile placement and hanging:
- Gebrûk fan tafel: The non-slip rubber base ensures stability when placed on flat surfaces.
- Hanging: Use the integrated top handle to hang the lantern.
- Inverted Hanging: The bottom cover is removable, revealing a hook. This allows you to hang the lantern upside down for broader downward illumination.
Image: The lantern shown hanging upright using its top handle and inverted using its bottom hook.
Wetterbestindich (IPX4)
This lantern features an IPX4 water resistance rating, meaning it is protected against splashing water from any direction. It can withstand light rain or snow, making it suitable for outdoor use in various weather conditions. Foarsichtigens: This product is not designed for immersion in water or exposure to heavy rain. Please avoid using it in severe weather conditions.

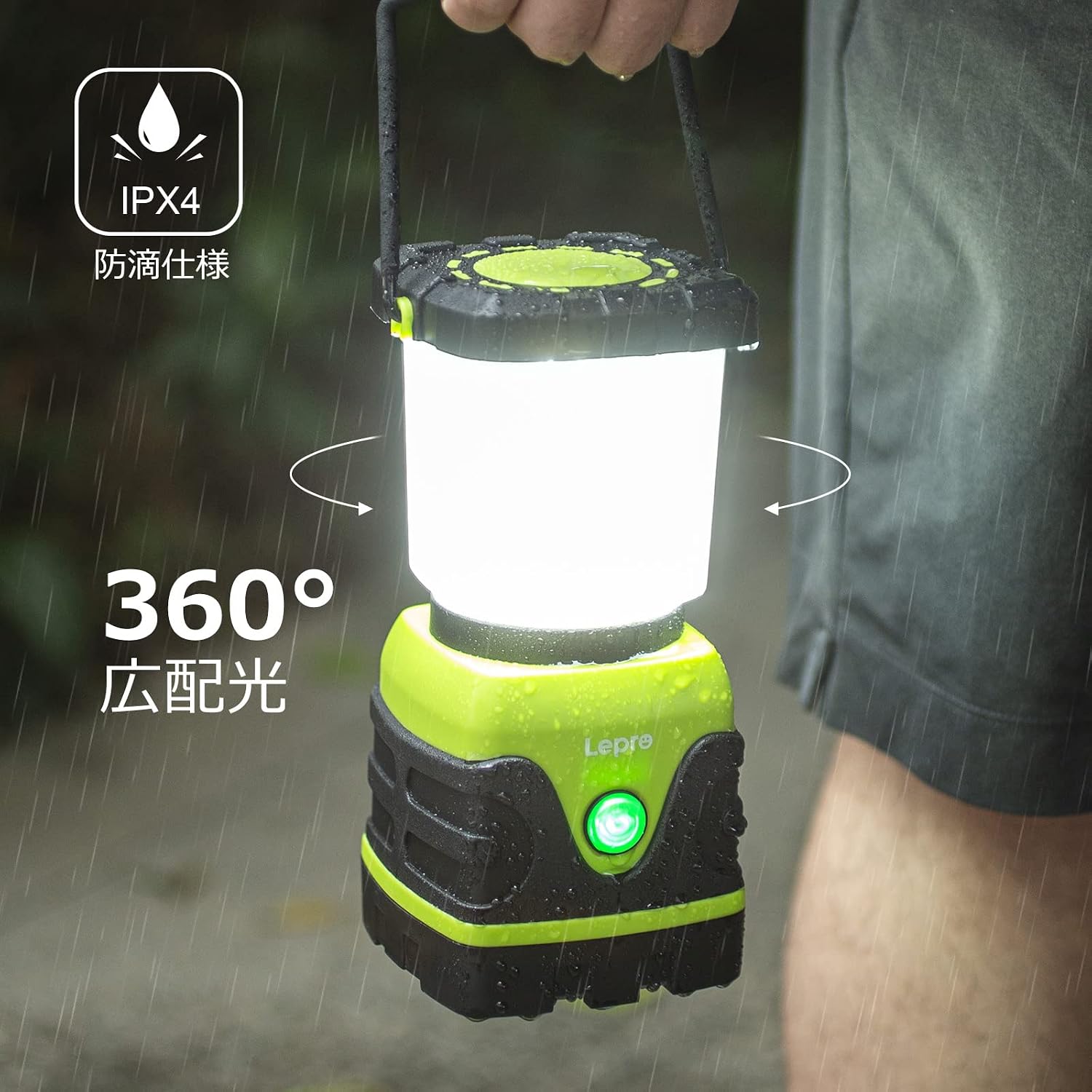

Image: The lantern operating in light rain, illustrating its IPX4 water-resistant design.
Ûnderhâld
- Reiniging: Wipe the lantern with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Opslach: When not in use for extended periods, store the lantern in a cool, dry place. Ensure it is fully charged before storage and recharge it every 3-6 months to maintain battery health.
- Batterij soarch: Foarkom it faak folslein ûntladen fan 'e batterij, om't dit de libbensdoer kin ferminderje.
Troubleshooting
| Probleem | Mooglike oarsaak | Oplossing |
|---|---|---|
| Lantern giet net oan. | Batterij is leech. | Charge the lantern fully using the provided Type-C USB cable. |
| Lantern net charge. | Charging cable or adapter is faulty; incorrect voltage. | Ensure the Type-C cable is securely connected. Try a different USB adapter (DC5V) or cable. |
| Light output is weak. | Battery is low; brightness setting is too low. | Recharge the lantern. Long-press the power button to increase brightness. |
| Kin eksterne apparaten net oplade. | Lantern battery is low; device cable is faulty. | Ensure the lantern is sufficiently charged. Try a different USB cable for your device. |
Spesifikaasjes
| Eigenskip | Spesifikaasje |
|---|---|
| Merk | Lepro |
| Model Number | PR330038-JP |
| Ljocht boarne Type | LED |
| Maximum Light Output | 1100 Lumens |
| Power Boarne | Oplaadbere batterij (USB Type-C) |
| Materiaal | Plestik |
| Ofmjittings (L x B x H) | 9.5 sm x 8.8 sm x 18.4 sm |
| Gewicht | Ca. 590g |
| Wetter Resistance Level | IPX4 (Spatbestindich) |
| Batterij Life | Up to 30 Hours (at lowest brightness) |
| Voltage | 4.5 Volt (DC) |
| Wattage | 10 W |
| Kleur Temperatuer | 3000 Kelvin (Warm White) - 6000 Kelvin (Cool White) |
Garânsje en stipe
Dit produkt komt mei in 1-jierrige garânsje from the date of purchase. If you encounter any issues or have questions regarding your Lepro USB Rechargeable LED Lantern, please contact Lepro customer support through your retailer or the official Lepro website. Please have your purchase receipt and model number (PR330038-JP) ready when contacting support.
