Vistefly V15s Max Cordless Vacuum Cleaner

Ynlieding

Thank you for choosing the Vistefly V15s Max Cordless Vacuum Cleaner. This powerful and versatile vacuum is designed to provide efficient cleaning for your home, featuring a 580W motor, 55kPa suction, intelligent dust detection, and a long-lasting battery. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your new appliance.

Lês dizze hantlieding goed troch foar it earste gebrûk en bewarje it foar takomstige referinsje.

Safety Information

Folgje altyd basisfeiligensmaatregels by it brûken fan elektryske apparaten om it risiko op brân, elektryske skok of ferwûning te ferminderjen.

• Brûk de stofsûger net bûten of op wiete oerflakken.
• Lit it net brûke as boartersguod. Nauwe oandacht is nedich by gebrûk troch of tichtby bern.
• Brûk allinnich sa't beskreaun yn dizze hantlieding. Brûk allinnich de taheaksels dy't troch de fabrikant oanrikkemandearre binne.
• Net brûke mei skansearre snoer of stekker. As it apparaat net wurket sa't it moat, is fallen, skansearre, bûtendoar litten, of yn wetter fallen, stjoer it dan werom nei in servicesintrum.
• Net lûke of drage troch it snoer, brûk it snoer as handgreep, slút in doar op it snoer, of lûk it snoer om skerpe rânen of hoeken. Rin it apparaat net oer it snoer. Hâld snoer fuort fan ferwaarme oerflakken.
• Net losmeitsje troch oan it snoer te lûken. Om de stekker los te meitsjen, gryp de stekker, net it snoer.
• Behannelje plug of stofsûger net mei wiete hannen.
• Set gjin objekt yn iepeningen. Net brûke mei ien iepening blokkearre; hâld frij fan stof, lint, hier, en alles dat kin ferminderje luchtstream.
• Hâld hier, losse klean, fingers en alle lichemsdielen fuort fan iepeningen en bewegende dielen.
• Nim neat op dat baarnt of smookt, lykas sigaretten, lucifers of hjitte jiske.
• Brûk ekstra soarch by it skjinmeitsjen op treppen.
• Net brûke om flammable of combustible floeistoffen op te heljen, lykas benzine, of brûke yn gebieten dêr't se oanwêzich wêze kinne.
• Bewarje de stofzuiger binnenshuis.
• Skeakelje it batterijpakket fan it apparaat út foardat jo oanpassingen meitsje, aksessoires feroarje of it apparaat opslaan.
• Brûk allinich de lader levere troch de fabrikant om op te laden.

Produkt oerview en komponinten

Familiarize yourself with the parts of your Vistefly V15s Max vacuum cleaner.

Image: The Vistefly V15s Max vacuum cleaner shown assembled and disassembled with its main components and accessories, including the digital display, extension tube, main brush, and various nozzles.

Ofbylding: In detaillearre view of all included components: Main body, battery, charger, user manual, telescopic tube, motorized brush, HEPA filter, 2-in-1 brush, mattress brush, crevice tool, and wall mount.

Ynbegrepen komponinten:

• Main Body
• Batterij
• Charger
• User Manual
• Teleskopyske buis
• Motorized Brush (Floor Brush)
• HEPA-filter
• 2-yn-1 boarstel
• Matrasborstel
• Crevice Tool
• Wall Mount

Opsette

Gearkomste:

1. Befestigje de teleskopyske buis: Insert the telescopic tube into the main body until it clicks into place.
2. Attach the Motorized Brush: Connect the motorized brush head to the other end of the telescopic tube, ensuring it clicks securely.
3. Ynstallearje de batterij: Slide the removable battery pack into the designated slot on the main body until it locks.
4. Choose Accessories: For handheld use, attach desired accessories (e.g., 2-in-1 brush, crevice tool, mattress brush) directly to the main body.

Inisjele opladen:

Before first use, fully charge the battery. The quick charge takes approximately 4 hours.

• Connect the charger to the battery pack or directly to the vacuum cleaner if the battery is installed.
• Stek de lader yn in stopkontakt.
• The LED touchscreen will indicate charging status and battery percentage.

Image: The removable 8-cell lithium battery pack, highlighting its easy removal for charging or replacement.

Image: The wall-mounted storage and charging station, showing the vacuum cleaner docked for convenient storage and charging.

Operating Instructions

Yn-/útskeakelje:

Druk op de oan/út-knop op 'e hânfet om de stofzuiger oan of út te skeakeljen.

Suction Modes and Runtime:

The V15s Max offers four suction modes, adjustable via the LED touchscreen:

• Auto Mode (35-55 kPa): Automatically adjusts suction based on dust amount. Runtime: 20-70 minutes.
• Eco Mode (35 kPa): For light cleaning and maximum battery life. Runtime: Up to 75 minutes.
• Standard Mode (45 kPa): For everyday cleaning. Runtime: Approximately 40 minutes.
• Max Mode (55 kPa): For deep cleaning and stubborn dirt. Runtime: Approximately 20 minutes.

Image: The all-in-one LED touchscreen display, showing battery percentage and suction level controls.

Intelligent Dust Detection:

In Auto Mode, the vacuum cleaner's intelligent sensor detects the amount of dust and automatically adjusts the suction power for optimal cleaning efficiency and battery usage.

Image: Illustration of the intelligent dust detection system, showing how suction power (35kPa, 45kPa, 55kPa) adjusts based on the amount of debris on the floor.

Veelzijdige reiniging:

The V15s Max can be easily converted into a handheld vacuum for cleaning various surfaces, including furniture, car interiors, and hard-to-reach areas. The V-shaped motorized brush is designed to prevent hair tangling and is suitable for different floor types like hardwood, tiles, and carpets.

Image: A woman using the Vistefly V15s Max to clean a carpeted floor, demonstrating its ease of use and effectiveness on various surfaces.

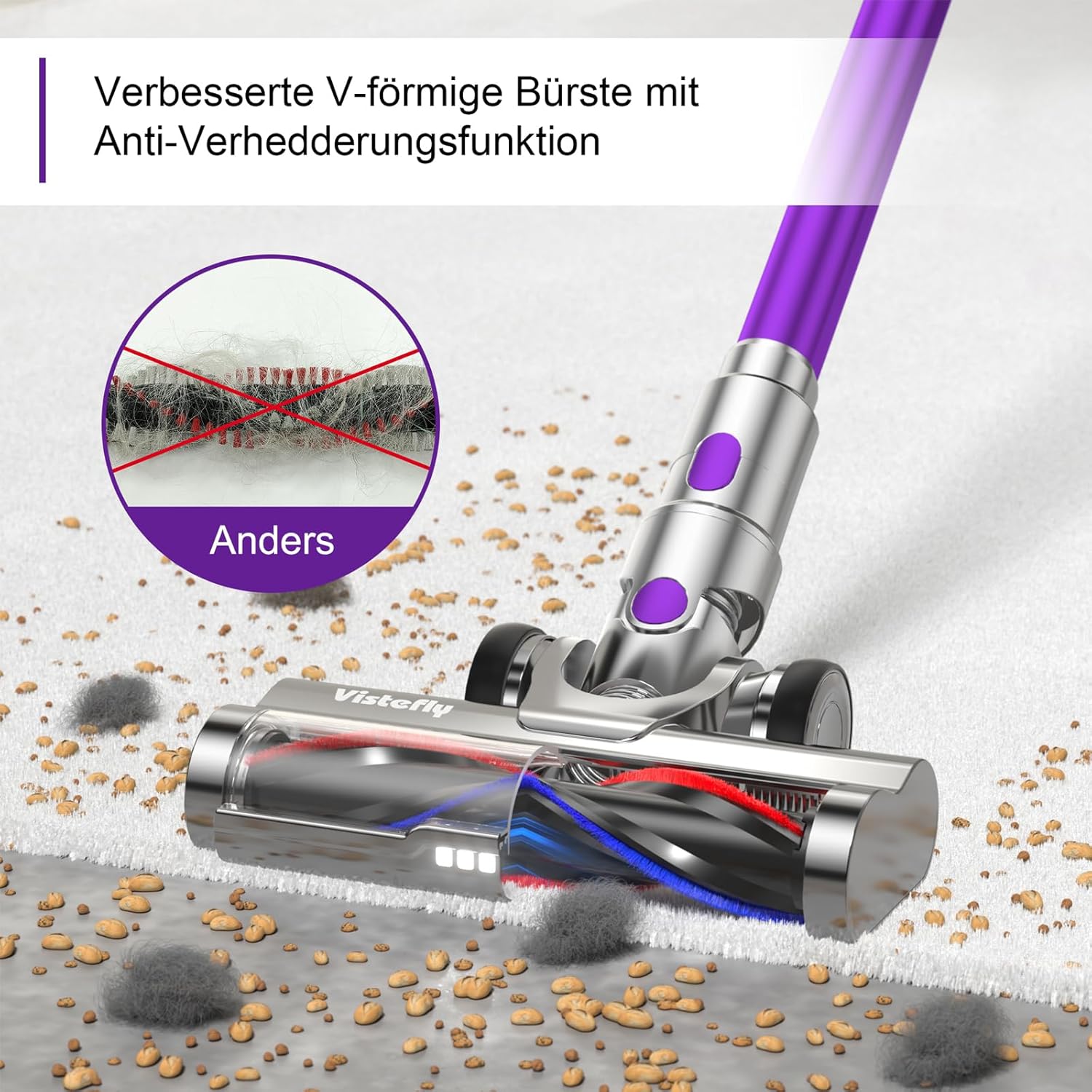

Image: Close-up of the improved V-shaped brush with anti-tangle function, illustrating how it prevents hair from wrapping around the brush roll compared to conventional designs.

Adjustable Extension Tube:

The length of the extension tube can be manually adjusted to suit your height and cleaning needs, making it comfortable for various users and easy to store.

Selsstannich ûntwerp:

The V15s Max features a self-standing design, allowing it to stand upright on its own without needing to lean against a wall. This makes temporary storage and breaks during cleaning more convenient.

Image: The Vistefly V15s Max vacuum cleaner standing independently in a living room, demonstrating its self-supporting design for easy storage and pausing during cleaning.

Ûnderhâld

De jiskefet leegje:

The 1-liter dustbin can be easily emptied with one hand. Press the release button to open the dustbin flap and dispose of collected debris.

Filter System Cleaning:

The V15s Max features a 6-stage high-efficiency filtration system, including a HEPA filter, which captures 99.99% of dust and particles. Regular cleaning of the filters is crucial for maintaining optimal suction power.

• Nim de stofbak fuort en skied de filterkomponinten.
• Tap off loose dust from the HEPA filter and other filter parts.
• Rinse washable filter components under cold water. Ensure they are completely dry before reassembling.
• Replace the HEPA filter periodically (refer to product packaging or Vistefly website for replacement frequency).

Cleaning the Motorized Brush:

Periodically check the motorized brush for tangled hair or debris. The V-shaped design minimizes tangles, but occasional cleaning may be necessary.

• Turn off the vacuum and disconnect it from power.
• Remove the brush roll from the brush head (refer to the diagram in the user manual for specific instructions).
• Brûk in skjirre of in skjinmakark om alle yninoar klaaide hier of fezels te knippen en te ferwiderjen.
• Set de boarstelrol feilich werom.

Troubleshooting

If you encounter issues with your Vistefly V15s Max, refer to the following common problems and solutions:

For more detailed troubleshooting or issues not listed here, please refer to the comprehensive user manual or contact Vistefly customer support.

Spesifikaasjes

Garânsje en stipe

Vistefly is committed to providing high-quality products and excellent customer service.

• Garânsje: Your Vistefly V15s Max comes with a 2-year warranty.
• Technyske bystân: Libbenslange technyske stipe is beskikber foar jo produkt.
• Returns & Refunds: Enjoy a 30-day replacement and refund policy.
• Klanttsjinst: 24/7 customer service is available to assist you with any inquiries or issues.

For support, please visit the official Vistefly store on Amazon or contact their customer service directly. You can find contact information in the packaging or on the Vistefly brand store page.

Image: Vistefly customer support details, highlighting 2-year warranty, lifetime technical assistance, 30-day replacement & refund, and 24/7 customer service.
