OUTON Floor Lamp Instruction Manual

Ynlieding

This manual provides detailed instructions for the assembly, operation, and maintenance of your OUTON Floor Lamp. Please read this manual thoroughly before using the product to ensure safe and efficient operation. Keep this manual for future reference.

Safety Ynstruksjes

• Soargje derfoar dat de macht oanbod voltage komt oerien mei de lamp's easken (220 Volt).
• Net operearje de lamp mei in skansearre snoer of stekker.
• Mije it pleatsen fan de lamp in unstable locations. The heavy base provides stability, but caution is advised around children and pets.
• Do not touch the bulb immediately after use, as it may be hot.
• For indoor use only. This product is not water-resistant.
• Altyd de lamp út it stopkontakt foardat jo lampen skjinmeitsje of ferfange.

Pakketynhâld

Kontrolearje oft alle ûnderdielen oanwêzich binne foardat jo se gearstalle:

• Floor Lamp Basis
• Lamp Pole Sections (multiple)
• Main Lamp Head (Mother Lamp)
• Lêzing Lamp Head (Child Lamp) with flexible gooseneck
• E26 LED Bulbs (2 included)
• Remote Control
• User Manual (dit dokumint)

Opset en gearkomste

De OUTON Floor Lamp is designed for easy, tool-free assembly, typically completed within 5 minutes.

1. Komponinten útpakke: Helje alle ûnderdielen foarsichtich út 'e ferpakking en liz se op in skjin, flak oerflak.
2. Sammelje Lamp Poal: Skroef de lamp pole sections together clockwise. Ensure each section is securely tightened to prevent wobbling. The wire should run freely through the pole.
3. Oanhingje Lamp Heads: Ferbine de wichtichste lamp head and the reading lamp head to the top pole section. Ensure the electrical connections are secure.
4. Ynstallearje bulbs: Screw the two provided E26 LED bulbs into their respective sockets in the main lamp head and the reading lamp holle.
5. Befestigje basis: Securely screw the assembled lamp pole into the heavy-weighted base. The base is designed for stability.
6. Posysje Lamp: Plak de lamp on a flat, stable surface. Adjust the flexible gooseneck of the reading lamp to your desired angle (up to 90° bend and 350° rotation).
7. Ferbine macht: Stek it netsnoer yn in gaadlik 220V stopkontakt.

Image: Assembly diagram with dimensions. This image illustrates the lamp's height (70.8 inches), main lamp diameter (10 inches), reading lamp dimensions (6 inches height, 4 inches diameter), cord length (6.7 feet), and base diameter (9.86 inches). It also highlights tool-free assembly, the 90-degree adjustable gooseneck, and the heavy-weighted base.

Ofbylding: Detail fan 'e lamp's heavy base. The base is designed to provide stability, tested to withstand an 8° tilt, ensuring safety around children and pets.

Operating Instructions

Funksjes op ôfstân kontrôle

De OUTON Floor Lamp can be controlled using the included remote control. The two lamps (main and reading) can be operated independently.

Image: Remote control. The remote allows adjustment of brightness, color temperature, and activation of the 1-hour timer.

• Power knop: Draait de lamp ON/OFF.
• Oanpassing fan helderheid: Use the '+' and '-' buttons to increase or decrease brightness from 5% to 100%.
• Oanpassing fan kleurtemperatuer: Cycle through available color temperatures (e.g., 3000K Warm White, 4000K Natural White, 5000K Daylight, 6000K Cool White for the main lamp; 3000K-5000K for the reading lamp).
• 1H Timer Button: Activates the 1-hour sleep timer. The light will gradually dim before turning off.
• Lamp Seleksjeknoppen: Separate buttons to control the main (mother) lamp and the reading (child) lamp selsstannich.
• Sêne Modes: Pre-set buttons for various lighting scenes (e.g., Working, Reading, Romantic, Timer).

Manual Control (Rocker Switch)

In addition to the remote, a rocker switch on the lamp pole provides basic ON/OFF functionality for both lamps.

Helderheid en kleurtemperatuer

De wichtichste lamp offers continuous dimming from 5% to 100% brightness and adjustable color temperatures from 3000K (warm white) to 6000K (cool white). The reading lamp provides 4 distinct color temperatures ranging from 3000K to 5000K for optimal task lighting.

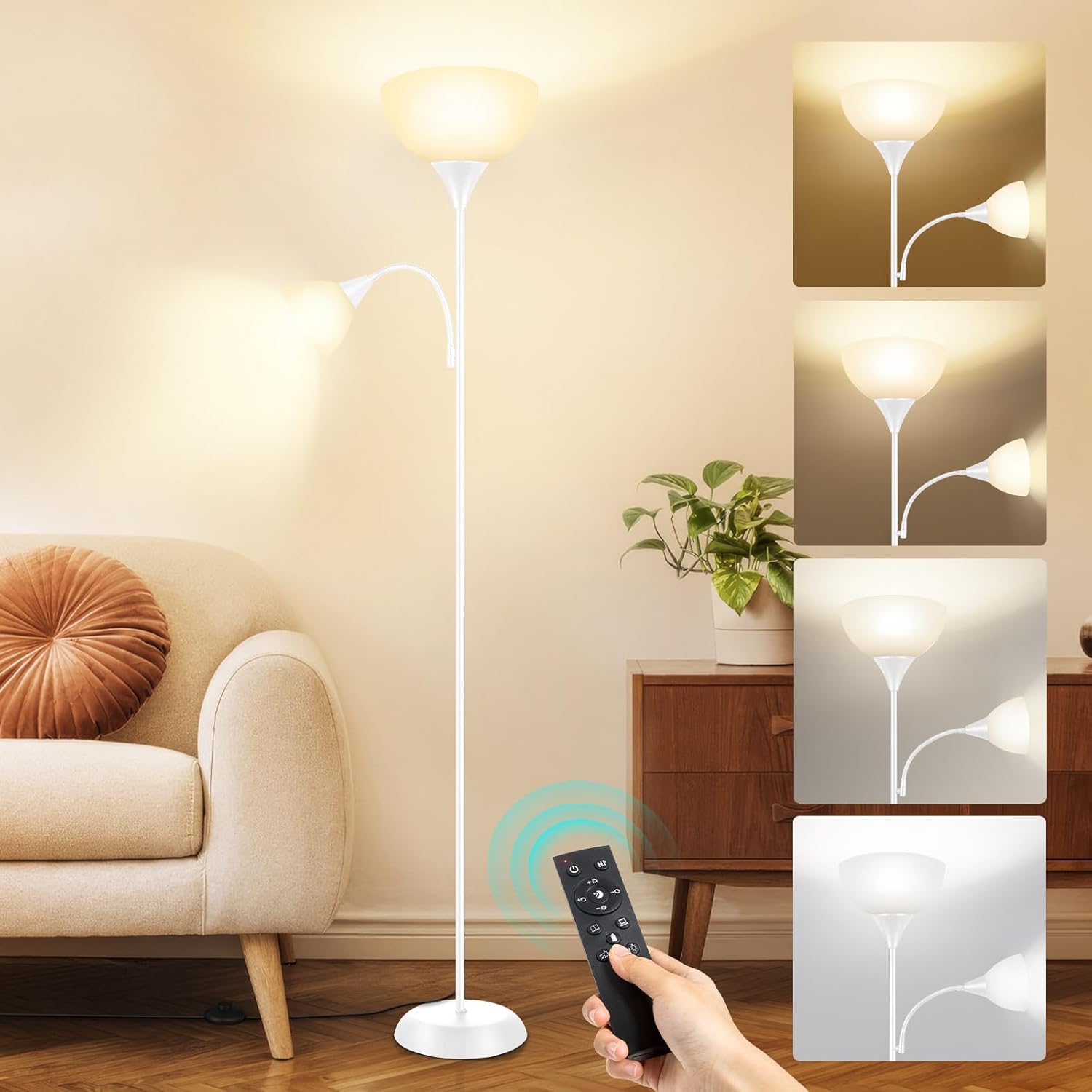

Image: Brightness and color temperature adjustment. This visual demonstrates the range of light from warm (3000K) to cool (6000K) and the stepless dimming capability.

1-Hour Sleep Timer

Activate the 1-hour timer function via the remote control. The lamp will gradually dim over 60 minutes, providing a comfortable transition to sleep before automatically turning off.

Image: 1-Hour Sleep Timer in use. The timer function allows the lamp to slowly dim, promoting a relaxed environment for sleep.

Unthâld Funksje

De lamp features a memory function that recalls the last brightness and color temperature settings used when it was last turned off. This ensures your preferred lighting is restored upon reactivation.

Ûnderhâld

• Reiniging: Skeakelje de stroom út foardat jo skjinmeitsje. Wiskje de lamp mei in sêfte, droege doek. Brûk gjin abrasive reinigingsmiddels of oplosmiddels.
• Bulb ferfanging: Soargje derfoar dat de lamp is unplugged and the bulbs have cooled before attempting to replace them. Use E26 base bulbs.
• Algemiene soarch: Regularly check the power cord for any signs of damage. Ensure all connections remain secure.

Troubleshooting

Spesifikaasjes

Garânsje en stipe

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official OUTON webside. Bewarje jo oankeapbewiis as bewiis fan oankeap foar garânsjeclaims.
