Ynlieding
This manual provides detailed instructions for the installation, operation, and maintenance of your Vistefly Dust Bin, designed specifically for the V15 Apex Cordless Vacuum Cleaner. Please read this manual thoroughly before use to ensure proper function and longevity of the product.

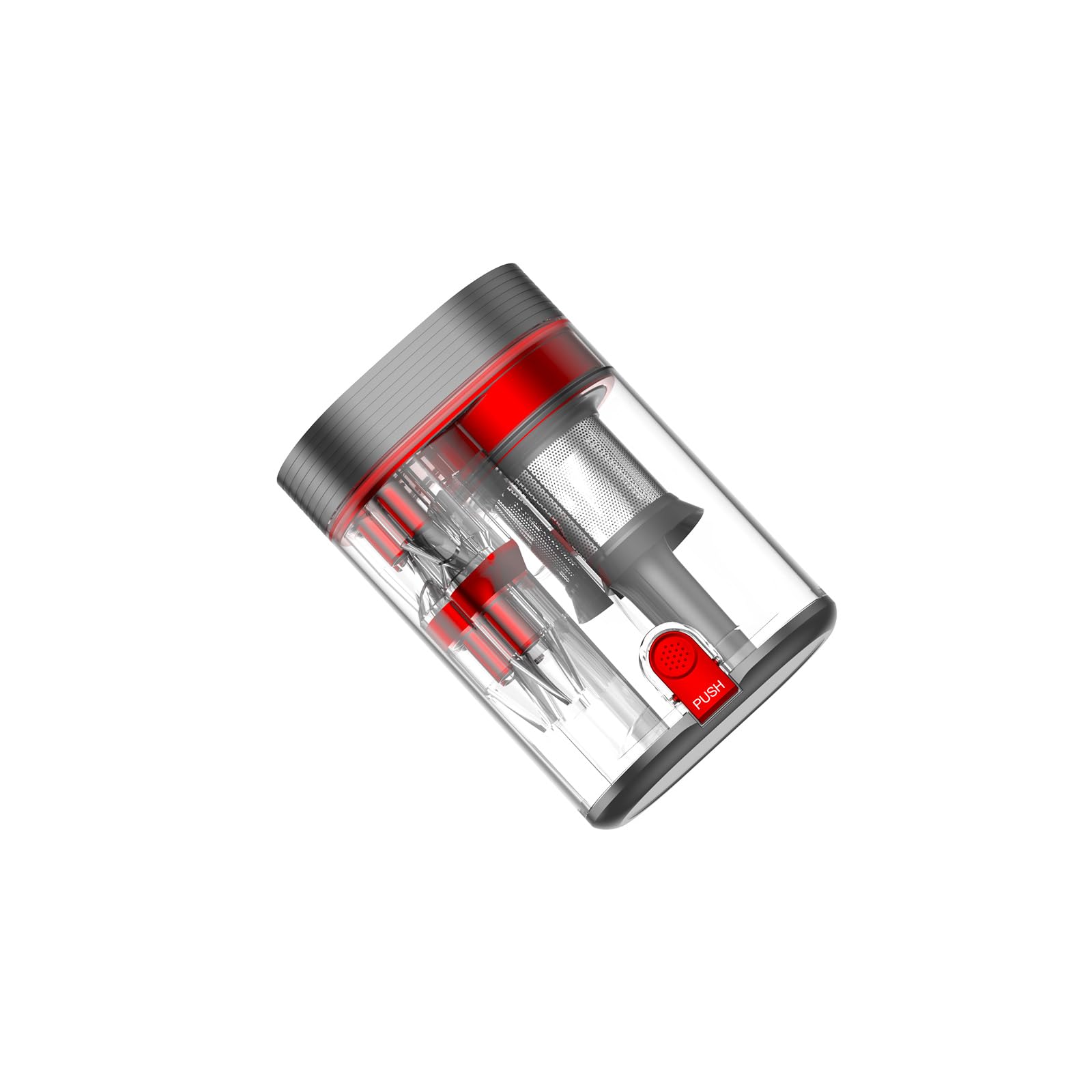

Ofbylding 1: Vistefly Dust Bin for V15 Apex Cordless Vacuum Cleaner. This image shows the red and black dust bin component, detached from the main vacuum unit, highlighting its design and connection points.
Opset en ynstallaasje
The Vistefly Dust Bin is a replacement part for the V15 Apex Cordless Vacuum Cleaner. Follow these steps to install the new dust bin:
- Soargje derfoar dat de stroom útskeakele is: Before beginning, ensure your Vistefly V15 Apex vacuum cleaner is turned off and disconnected from any charging source.
- Remove Old Dust Bin (if applicable): Locate the release button or latch for the dust bin on your V15 Apex vacuum. Press the button and carefully detach the old dust bin from the main vacuum body.
- Inspect New Dust Bin: Unpack the new Vistefly Dust Bin and inspect it for any damage. Ensure all components, including the filter, are correctly seated.
- Attach New Dust Bin: Align the new dust bin with the connection points on the main body of the V15 Apex vacuum cleaner. Push firmly until you hear a click, indicating it is securely locked in place.
- Ferbine ferbining: Gently tug on the dust bin to confirm it is firmly attached and will not detach during operation.
Operating the Dust Bin
The primary function of the dust bin is to collect debris during vacuuming. Proper emptying is crucial for maintaining vacuum performance.
De stofbak leegje:
- Ferbine mei fakuüm: Turn off the vacuum cleaner. If the dust bin is full, detach it from the main vacuum body as described in the setup section.
- Sykje frijlittingsmeganisme: Hold the dust bin over a waste receptacle. Locate the dust bin's bottom release latch or button.
- Open and Empty: Press the release button to open the bottom flap of the dust bin. Allow all collected dust and debris to fall into the waste bin. Gently tap the dust bin to dislodge any stuck particles.
- Flap slute: Close the bottom flap securely until it clicks into place.
- Reattach to Vacuum: Reattach the emptied dust bin to the V15 Apex vacuum cleaner, ensuring it is securely locked.
Oanbefelling: Empty the dust bin after each use or when the MAX fill line is reached to maintain optimal suction power and prevent clogging.
Ûnderhâld en Cleaning
Regular cleaning of the dust bin and its filter components is essential for maintaining the performance and lifespan of your Vistefly V15 Apex vacuum cleaner.
Reinigje de stofbak:
- Frekwinsje: Clean the dust bin thoroughly at least once a month, or more frequently with heavy use.
- Demontage: After emptying, detach the dust bin from the vacuum. Remove any internal components, such as the cyclone separator or pre-filter, if they are designed to be removable.
- Waskje: Rinse the dust bin and removable internal components under cold running water. Do not use hot water or detergents, as this can damage the plastic.
- Droech: Ensure all parts are completely dry before reassembling and reattaching to the vacuum. Air dry for at least 24 hours. Do not use a dryer or direct heat.
Reiniging fan it HEPA-filter:
- Frekwinsje: The HEPA filter should be cleaned regularly, typically every 2-4 weeks, depending on usage.
- Fuortsmite: Locate and carefully remove the HEPA filter from the dust bin assembly. Refer to your main V15 Apex vacuum manual for specific filter removal instructions if needed.
- Waskje: Tap the filter gently over a waste bin to remove loose dust. Rinse the filter under cold running water until the water runs clear. Do not twist or wring the filter.
- Droech: Allow the HEPA filter to air dry completely for at least 24 hours before reinserting it. Ensure it is bone dry to prevent mold growth and damage to the vacuum.
- Ferfanging: HEPA filters have a limited lifespan. Replace the HEPA filter every 6-12 months, or if it appears damaged or excessively dirty, even after cleaning.
Troubleshooting
If you encounter issues with your Vistefly Dust Bin, refer to the following common problems and solutions:
| Probleem | Mooglike oarsaak | Oplossing |
|---|---|---|
| De stofbak sit net feilich fêst. | Incorrect alignment; obstruction; damaged latch. | Ensure correct alignment with the vacuum body. Check for any debris blocking the connection points. Inspect the latch for damage. |
| Dust bin does not empty completely. | Debris stuck; flap mechanism obstructed. | Tap the dust bin gently. Clear any large debris or hair tangles. Ensure the bottom flap opens fully. |
| Reduzearre suction power. | Dust bin full; clogged filter; internal blockage. | Empty the dust bin. Clean or replace the HEPA filter. Check for blockages in the dust bin's air pathways. |
| Dust escaping from the bin. | Dust bin not sealed properly; damaged seals; cracked bin. | Ensure the dust bin is securely attached and the bottom flap is closed. Inspect rubber seals for damage. If the bin is cracked, it may need replacement. |
Spesifikaasjes
Key specifications for the Vistefly Dust Bin for V15 Apex Cordless Vacuum Cleaner:
- Merk: Vistefly
- Model Namme: V15 Apex
- Compatible Vacuum Model: Vistefly V15 Apex Cordless Vacuum Cleaner
- Kleur: Read
- Ofmjittings (pakket): 20.9 x 14.7 x 11.6 sm (sawat 8.2 x 5.8 x 4.6 inch)
- Item Gewicht: 620 gram (sawat 1.37 lbs)
- Spesjale eigenskippen: Compact, HEPA filter compatible, Lightweight, Cordless (as part of the vacuum system), Bagless
- Filtertype: HEPA-filter
Garânsje en stipe
For specific warranty information regarding your Vistefly Dust Bin, please refer to the warranty documentation provided with your original Vistefly V15 Apex vacuum cleaner or contact the retailer where the dust bin was purchased. Warranty terms may vary by region and retailer.
For technical support or further assistance, please visit the official Vistefly website or contact their customer service department. Keep your purchase receipt and product model number (V15 Apex) handy when seeking support.
