1. Safety Ynstruksjes
Please read all instructions carefully before using the Secura Ice Cream Maker to ensure safe and efficient operation. Keep this manual for future reference.
- Elektryske feiligens: Soargje de voltage matches your power supply. Do not immerse the motor unit, cord, or plug in water or other liquids. Unplug the appliance when not in use, before assembling or disassembling parts, and before cleaning.
- Bern: This appliance should not be used by children. Close supervision is necessary when any appliance is used near children.
- Bewegende dielen: Avoid contact with moving parts. Keep hands, hair, clothing, and utensils away from the mixing paddle during operation to prevent injury and damage to the appliance.
- Goed gebrûk: Use the appliance only for its intended purpose of making frozen desserts. Do not use attachments not recommended or sold by the manufacturer.
- Pleatsing: Place the appliance on a stable, flat, heat-resistant surface. Do not operate the appliance in the presence of explosive and/or flammable fumes.
- Beskeadige snoer/stekker: Brûk gjin apparaat mei in beskeadige snoer of stekker, of nei't it apparaat net goed wurket of fallen is of op ien of oare manier beskeadige is. Nim kontakt op mei klanttsjinst foar help.
- Friezerbak: The freezer bowl contains a cooling liquid. Do not puncture or damage the bowl. Ensure the bowl is completely frozen before use (at least 24 hours at -4°F / -20°C).
- Reiniging: Always clean the appliance thoroughly before first use and after each subsequent use. Refer to the "Maintenance" section for detailed cleaning instructions.
2. Produkt Overview
The Secura Ice Cream Maker LX-1007 is designed for easy preparation of homemade ice cream, gelato, sorbet, and frozen yogurt. Familiarize yourself with its components before use.
2.1 komponinten
- Motor ienheid: Befettet de motor en de oan/út-skeakel.
- Transparant lid: Covers the freezer bowl and allows ingredients to be added during operation.
- Mingpeddel: Churns the ingredients to create a smooth, creamy texture.
- Friezerbak: Double-walled bowl containing a freezing liquid, which must be pre-frozen.
- Bûtenste Casing: Provides insulation and stability for the freezer bowl.
Ofbylding: Eksplodearre view of the Secura Ice Cream Maker showing its main components.
2.2 Unboxing and Assembly Video

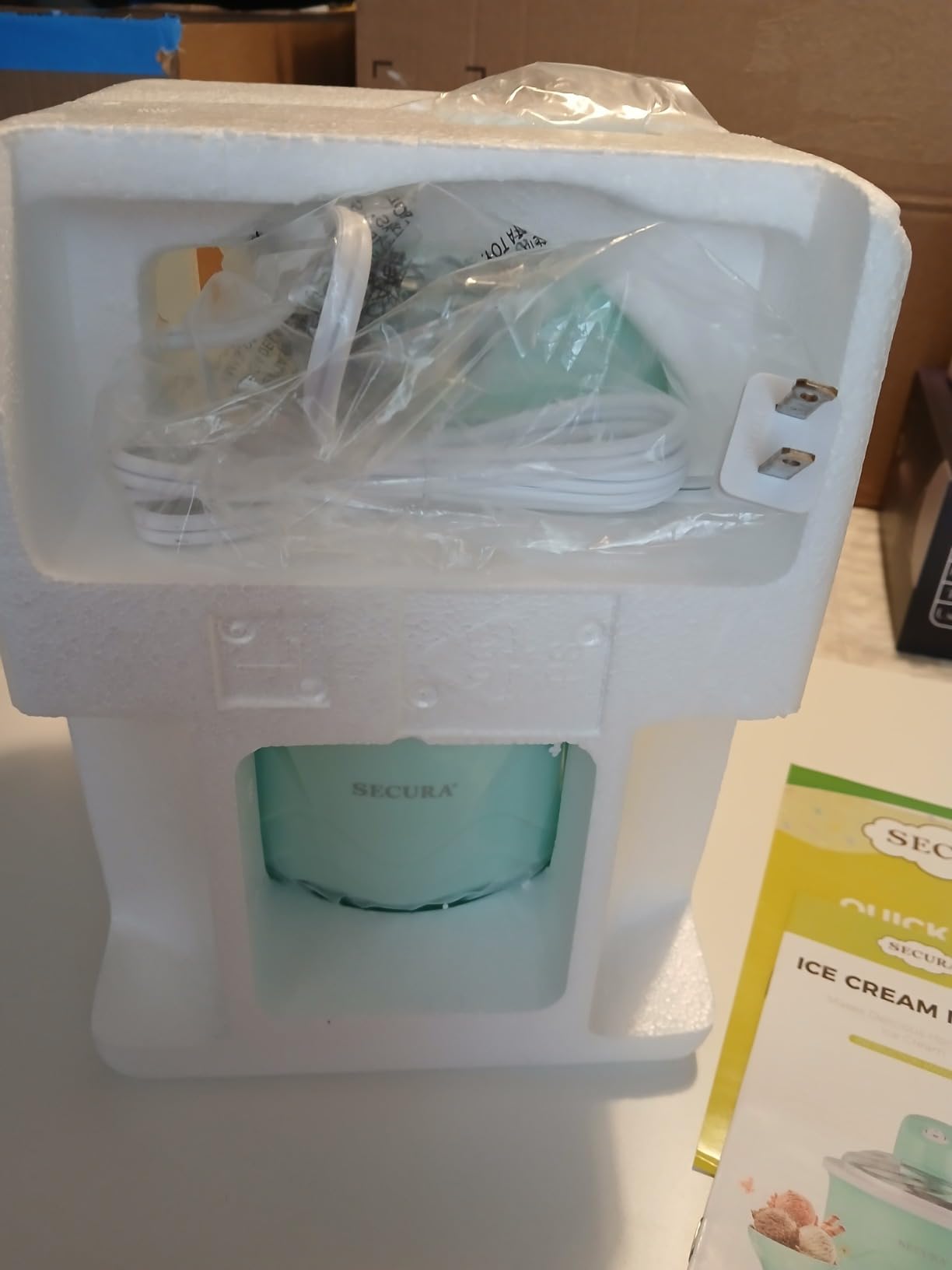

Video: This video demonstrates the unboxing and assembly process of the Secura Ice Cream Maker LX-1007, detailing each component and how they fit together.
3. Opsette
Proper setup is crucial for optimal performance and delicious results.
3.1 De friezerbak tariede
- Ensure the freezer bowl is clean and dry.
- Place the freezer bowl upright in your freezer at -4°F (-20°C) or colder for at least 24 hours. A properly frozen bowl will not make any sound when shaken, indicating the internal liquid is solid.
- For best results, store the freezer bowl in the coldest part of your freezer.
Image: Checking if the freezer bowl is properly frozen by shaking it. No sound indicates it's ready.
3.2 Assembling the Ice Cream Maker
- Once the freezer bowl is thoroughly frozen, remove it from the freezer.
- Place the freezer bowl into the outer casing.
- Insert the mixing paddle into the center hole of the transparent lid.
- Attach the motor unit to the transparent lid, ensuring the shaft of the motor unit aligns with the mixing paddle.
- Place the assembled lid and motor unit onto the freezer bowl, twisting gently to secure it in place.
Image: Step 1 of assembly, showing the freezer bowl and motor unit being prepared.
Image: Step 2 of assembly, showing the motor unit being placed on the lid.
3.3 Yngrediïnten tariede
- Prepare your ice cream, gelato, or sorbet mixture according to your recipe.
- For best results, chill your ingredients in the refrigerator for at least 2-4 hours, or overnight, before churning. Cold ingredients will freeze faster and result in a smoother texture.
- The maximum capacity for ingredients is 350 ml (approximately 12 ounces). Do not overfill the bowl, as the mixture will expand during freezing.
4. Bedriuwsinstruksjes
Follow these steps to make delicious homemade frozen desserts.
- Ensure the ice cream maker is fully assembled and the freezer bowl is properly frozen.
- Stek it apparaat yn in standert stopkontakt.
- Turn on the power switch. The mixing paddle will begin to rotate.
- Promptly pour your chilled ice cream mixture into the freezer bowl through the opening in the transparent lid.
- Allow the machine to run for 12-20 minutes. The exact time may vary depending on the recipe, ingredient temperature, and desired consistency. Less ingredient quantity generally means shorter processing time.
- The ice cream will have a soft-serve consistency when ready. For a firmer texture, transfer the ice cream to an airtight container and freeze for an additional 2-4 hours. Alternatively, remove the paddle and leave the ice cream in the freezer bowl for about an hour.
- Turn off the power switch and unplug the appliance before disassembling and serving.
4.1 Operation Steps Visual Guide
Image: Pouring ingredients into the running ice cream maker.
Image: Ice cream churning inside the machine.
4.2 Beginner's Guide Video
Video: This video provides a step-by-step guide for beginners on how to use the Secura Ice Cream Maker to create various frozen desserts.
5. Underhâld
Regular cleaning and proper care will extend the life of your ice cream maker.
5.1 Cleaning Ynstruksjes
- Unplug: Koppel it apparaat altyd foar it skjinmeitsjen út it stopkontakt.
- Demontearje: Disassemble all removable parts: motor unit, transparent lid, mixing paddle, and freezer bowl.
- Hânwaskje: Hand wash the transparent lid, mixing paddle, and freezer bowl with warm, soapy water. Rinse thoroughly and dry completely. Do not wash these parts in a dishwasher, as extreme heat can damage them.
- Wiskje motor ienheid: Wiskje de motor ienheid mei adamp doek. Dompel de motor ienheid net yn wetter of in oare floeistof.
- Droog goed: Soargje derfoar dat alle dielen folslein droech binne foardat jo opnij gearstalle of opslaan.
Image: Cleaning the mixing paddle, demonstrating easy cleanup.
Noat: The freezer bowl should not be placed in the dishwasher as it can damage the internal freezing liquid and the bowl's structure.
6. Probleemoplossing
If you encounter any issues with your Secura Ice Cream Maker, refer to the following common problems and solutions:
| Probleem | Mooglike oarsaak | Oplossing |
|---|---|---|
| Masine giet net oan. | Net ynstutsen; stroom útskeakele; stroom úttage. | Ensure the appliance is securely plugged into a working outlet. Check the power switch. Verify power supply. |
| Ingredients not freezing. | Freezer bowl not sufficiently frozen; ingredients not chilled; too much mixture. | Ensure freezer bowl is frozen for at least 24 hours at -4°F (-20°C). Chill ingredients thoroughly before adding. Do not exceed the 350 ml maximum capacity. |
| De mingpeddel stoppet tidens operaasje. | Mingsel is te dik; tefolle mingsel; motor rekket oerferhit. | Turn off the machine, unplug, and let it cool down for 10-15 minutes before restarting. Ensure mixture is not too thick. Reduce the amount of mixture. |
| Ice cream is too soft. | Insufficient churning time; freezer bowl not cold enough. | Allow the machine to churn for a longer period (up to 20 minutes). Ensure the freezer bowl was frozen for the recommended 24 hours. For firmer ice cream, transfer to an airtight container and freeze for an additional 2-4 hours. |
| Lid is difficult to remove after churning. | Lid may freeze onto the bowl due to cold temperatures. | Gently twist the lid. If it's stuck, allow it to sit at room temperature for a few minutes or use a warm, damp cloth around the edge to loosen it. |
If the problem persists after trying these solutions, please contact Secura customer support.
7. Spesifikaasjes
| Eigenskip | Detail |
|---|---|
| Merk | Secura |
| Model Namme | LX-1007 |
| Kapasiteit | 1 Quart (approx. 946 ml) |
| Maximum Ingredient Capacity | 350 ml |
| Voltage | 120 Volt |
| Wattage | 12 watt |
| Materiaal | Food Grade Safe Material |
| Operaasje Mode | Manual (with electric churning) |
| Produkt Care Ynstruksjes | Handwaskje |
| Noise Level | Approximately 55 dB during operation |

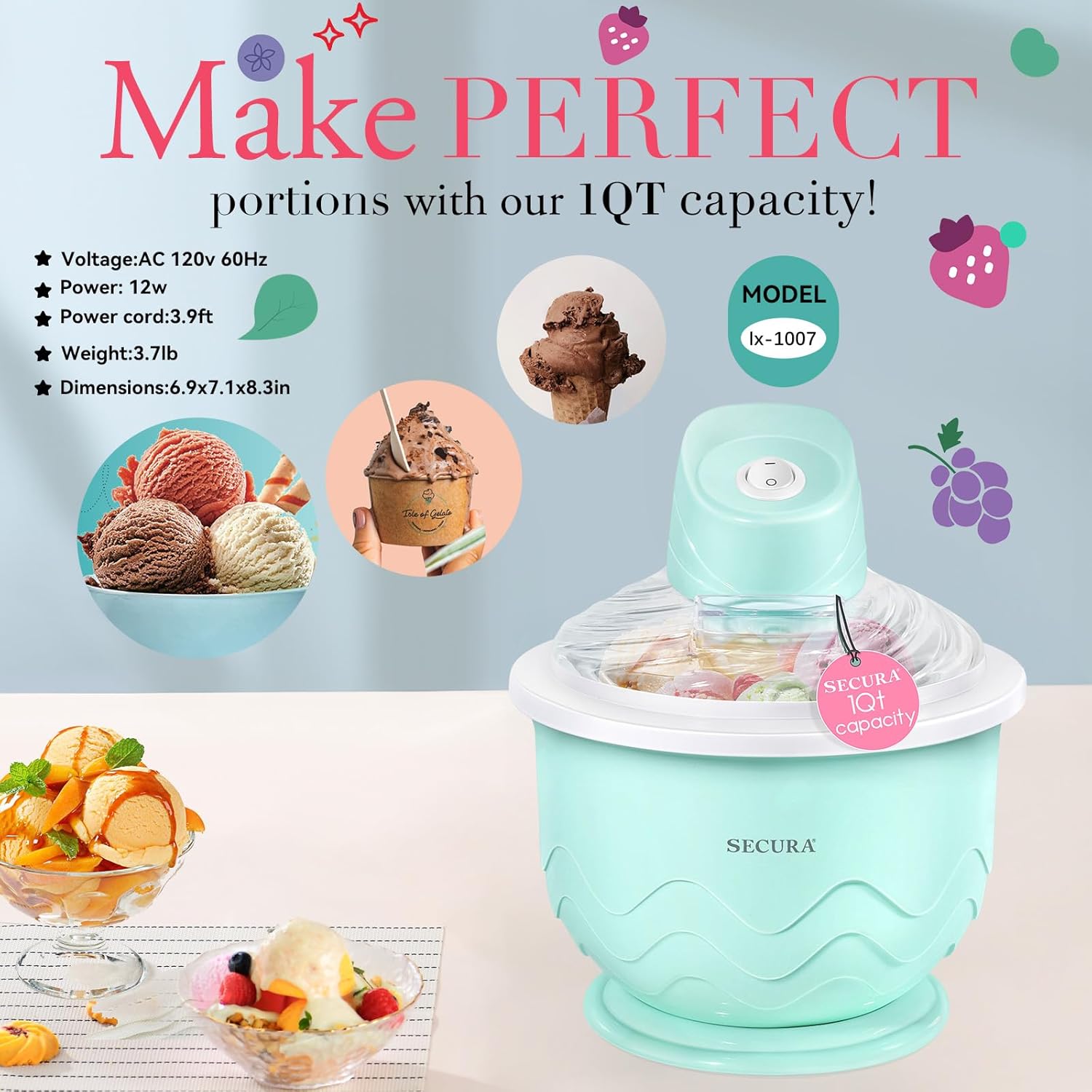

Image: Product specifications including voltage, krêft en dimensjes.
8. Garânsje & Support
Secura is committed to customer satisfaction. For any questions or concerns regarding your ice cream maker, please contact our customer support team.
- Klantstipe: Our team is available to assist you with any inquiries. We aim to respond within 24 hours.
- Garânsje ynformaasje: Please refer to the product packaging or contact customer support for specific warranty details.
For further assistance, visit the official Secura website or contact the retailer where you purchased the product.
