KOIOS BL309B

KOIOS BL309B Smoothie Blender Base User Manual

Model: BL309B

1. Wichtige Safety Ynstruksjes

By it brûken fan elektryske apparaten moatte basisfeiligens foarsoarchsmaatregels altyd wurde folge om it risiko fan brân, elektryske skok en/of ferwûnings oan persoanen te ferminderjen, ynklusyf de folgjende:

  • Lês alle ynstruksjes foardat jo de blender brûke.
  • To protect against electrical shock, do not immerse the blender base, cord, or plug in water or other liquids.
  • Nauwe tafersjoch is nedich as elk apparaat wurdt brûkt troch of tichtby bern.
  • Trek de stekker út 'e stopkontakt as net yn gebrûk, foardat it gearstallen of disassemble dielen, en foar skjinmeitsjen.
  • Foarkom kontakt mei bewegende dielen.
  • Brûk gjin apparaat mei in beskeadige snoer of stekker, of nei't it apparaat net goed wurket of fallen is of op ien of oare manier beskeadige is. Nim kontakt op mei klanttsjinst foar help.
  • It brûken fan taheaksels net oanrikkemandearre of ferkocht troch de fabrikant kin feroarsaakje brân, elektryske skok, of blessuere.
  • Brûk net bûten.
  • Lit it snoer net oer de râne fan tafel of oanrjocht hingje, of oanreitsje waarme oerflakken.
  • Hâld hannen en gebrûksfoarwerpen út 'e kontener by it mingen om de mooglikheid fan swiere ferwûnings oan persoanen of skea oan 'e blender te foarkommen. In skraper mei brûkt wurde, mar allinich as de blender net draait.
  • De blêden binne skerp. Behannelje mei soarch.
  • Always operate the blender with the cup and blade assembly properly secured.
  • Bliuw gjin waarme floeistoffen.
  • Besykje net te ferslaan it interlock meganisme.

2. Produkt Overview

The KOIOS BL309B Smoothie Blender Base is designed for personal blending of shakes and smoothies. It features a powerful 1000-watt motor base and comes with a 22oz blending cup and a stainless steel blade assembly.

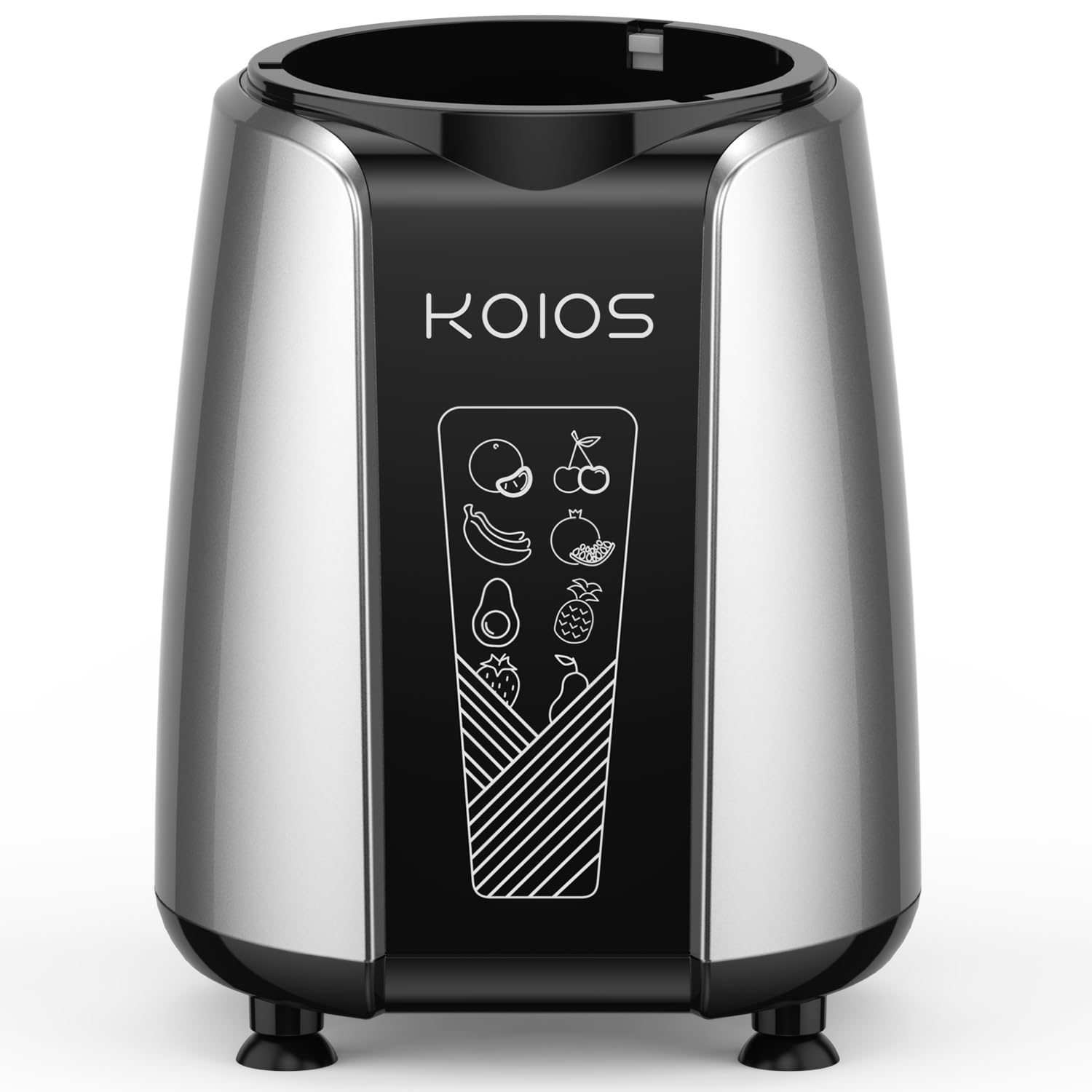

KOIOS BL309B Smoothie Blender Base with 22oz cup

Image: The KOIOS BL309B Smoothie Blender Base, featuring the main motor unit and a clear 22oz blending cup with a blade assembly attached.

Komponinten:

  • Blender basis: Contains the 1000-watt motor and control interface.
  • 22oz Blending Cup: The container for ingredients.
  • Blade gearstalling: Stainless steel blades for efficient blending, attaches to the blending cup.

3. Opset en gearkomste

Follow these steps to set up your KOIOS BL309B Smoothie Blender Base:

  1. Utpakke: Helje foarsichtich alle ûnderdielen út 'e ferpakking. Bewarje de ferpakking foar takomstige opslach of ferfier.
  2. Skjin: Before first use, wash the 22oz blending cup and blade assembly in warm, soapy water. Rinse thoroughly and dry. Wipe the blender base with a damp doek.
  3. Pleatsing: Place the blender base on a clean, dry, and stable surface. Ensure it is away from the edge of the counter and out of reach of children.
  4. Assemble Cup: Add your desired ingredients to the 22oz blending cup. Do not exceed the MAX fill line.
  5. Blade oanmeitsje: Screw the blade assembly firmly onto the open end of the blending cup until it is securely tightened.
  6. Plak op basis: Invert the assembled cup and blade, and place it onto the blender base. Align the tabs on the cup with the slots on the base. Twist clockwise until it locks into place.
  7. Ynstekke: Plug the power cord into a standard electrical outlet. The blender is now ready for operation.

4. Bedriuwsinstruksjes

Operating your KOIOS BL309B Smoothie Blender Base is straightforward:

  1. Tariede yngrediïnten: Cut solid ingredients into small pieces (approximately 1 inch or 2.5 cm) for optimal blending. Add liquids first, then soft ingredients, and finally harder ingredients or ice.
  2. Fill Cup: Add ingredients to the 22oz blending cup. Ensure the total volume does not exceed the MAX fill line indicated on the cup. Overfilling can lead to leakage or poor blending performance.
  3. Feilich blêd: Screw the blade assembly tightly onto the blending cup. Ensure there are no gaps to prevent leaks.
  4. Plak op basis: Invert the cup and blade assembly and place it onto the blender base. Twist clockwise until it clicks securely into position. The blender will not operate unless the cup is correctly locked.
  5. Blend: Press the power button or activate the blending function as per your model's specific controls. For continuous blending, hold the cup down or twist to lock. For pulse blending, press and release the cup or button repeatedly. Blend until desired consistency is achieved. Typical blending times for smoothies are 30-60 seconds.
  6. Stopje mei mingen: Release the cup or power button to stop blending.
  7. Beker fuortsmite: Twist the cup counter-clockwise to unlock it from the base, then lift it off.
  8. Tsjinje: Unscrew the blade assembly from the cup. You can drink directly from the cup or pour the contents into another container.

Wichtige notysjes:

  • Do not blend for more than 60 seconds continuously to prevent motor overheating. Allow the motor to cool down for several minutes between blending cycles if needed.
  • Never blend hot liquids, as pressure buildup can cause the cup to burst and result in injury.
  • If the blender stalls, unplug it immediately, remove the cup, and clear any obstructions before attempting to blend again.

5. Underhâld en Cleaning

Proper cleaning and maintenance will ensure the longevity and optimal performance of your KOIOS BL309B Smoothie Blender Base.

  1. Unplug: Always unplug the blender base from the electrical outlet before cleaning.
  2. Aparte komponinten: Remove the blending cup from the base and unscrew the blade assembly from the cup.
  3. Clean Blending Cup and Blade Assembly: Wash the 22oz blending cup and blade assembly immediately after use. Use warm, soapy water and a brush to clean around the blades carefully. Rinse thoroughly.
  4. Blade Safety: Exercise extreme caution when cleaning the blade assembly as the blades are very sharp.
  5. Blender basis: Wiskje de blenderbasis mei adamp cloth. Do not immerse the blender base in water or any other liquid.
  6. Droech: Soargje derfoar dat alle dielen folslein droech binne foardat jo opnij gearstalle of opslaan.

Belangryk: The blending cup and blade assembly are NET ôfwaskmasinebestindichAllinnich mei de hân waskje.

6. Probleemoplossing

If you encounter issues with your KOIOS BL309B Smoothie Blender Base, refer to the following common problems and solutions:

ProbleemMooglike oarsaakOplossing
Blender giet net oan.Net ynstekke.
Cup not properly locked onto base.
Storing yn stopkontakt.		Soargje derfoar dat de macht cord is feilich ynstútsenComment yn in wurkjende outlet.
Twist the cup clockwise until it locks into place.
Test it stopkontakt mei in oar apparaat.
De motor stoppet tidens it mingen.Oververhitting troch lange gebrûk.
Too many ingredients or ingredients are too hard.		Unplug the blender and let it cool down for at least 15-20 minutes.
Reduce the amount of ingredients or add more liquid. Cut hard ingredients into smaller pieces.
Lekkend út 'e beker.Blade assembly not tightened properly.
Beker te fol.
Seal skansearre.		Ensure the blade assembly is screwed on tightly to the cup.
Do not fill ingredients past the MAX fill line.
Inspect the seal for damage. Contact customer support if damaged.
Yngrediïnten mingje net glêd.Net genôch flüssigens.
Yngrediïnten binne te grut.
Blending time too short.		Add more liquid to facilitate blending.
Snij de yngrediïnten yn lytsere, unifoarme stikken.
Blend for a longer duration or use the pulse function.

If the problem persists after trying these solutions, please contact KOIOS customer support.

7. Spesifikaasjes

Technical specifications for the KOIOS BL309B Smoothie Blender Base:

  • Merk: KOIOS
  • Model Oantal: BL309B
  • Wattage: 1000 watt
  • Kapasiteit: 22oz (approximately 0.65 Liters)
  • Produktôfmjittings (D x B x H): 3.15" x 3.15" x 7.08" (8 sm x 8 sm x 18 sm)
  • Blade Materiaal: Rustfrij stiel
  • Item Gewicht: 1.21 kilogram (sawat 2.67 lbs)
  • Power Boarne: AC
  • Oanrikkemandearre gebrûk: Blending

8. Garânsje en stipe

KOIOS products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official KOIOS website.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact KOIOS customer service:

  • Website: Visit the KOIOS Store on Amazon
  • E-post: Refer to your product packaging or the KOIOS webside foar it meast aktuele kontakt-e-postadres.
  • Tillefoan: Refer to your product packaging or the KOIOS website for the most current contact phone number.

Please have your model number (BL309B) and purchase date available when contacting support.
