Zopsc 1080P HD Digital Camera User Manual

1. Ynlieding

Thank you for choosing the Zopsc 1080P HD Digital Camera. This manual provides essential information for setting up, operating, and maintaining your camera. Please read it thoroughly before use to ensure optimal performance and longevity of your device.

This compact digital camera is designed for ease of use, featuring 1080P video recording, 50MP photo capabilities, a 2.8-inch TFT screen, 16x digital zoom, and a built-in LED flash, making it suitable for various photography needs.

2. Produkt Overview

2.1 Key Features

• High Definition Imaging: Capture 50MP still images and record 1080P high-definition videos.
• 2.8-inch TFT Screen: View your shots and navigate menus with clarity.
• 16x Digital Zoom & Autofocus: Achieve precise focus and zoom in on distant subjects.
• Ynboude LED-zaklamp: Illuminate subjects in low-light conditions for clear photos and videos.
• Mearsidige funksjes: Includes playback, fill light, time-lapse video, slow motion, continuous shooting, and auto timer (2s, 5s, 10s).
• Ofbylding ferbettering: Supports exposure compensation, white balance adjustment, ISO settings, and anti-shake functionality.
• Kompakt en draachber: Lightweight design for easy carrying and travel.

2.2 Pakketynhâld

Kontrolearje asjebleaft oft alle folgjende items yn jo pakket opnommen binne:

• Zopsc Digital Camera
• Draagtas
• Charging Data Cable (USB)
• Hânriem
• User Manual (dit dokumint)

Image: The Zopsc Digital Camera shown with its included accessories: a gray carrying pouch, a white USB charging cable, and a gray hand strap.

3. Kameraûnderdielen en kontrôles

Familiarize yourself with the camera's layout and controls:

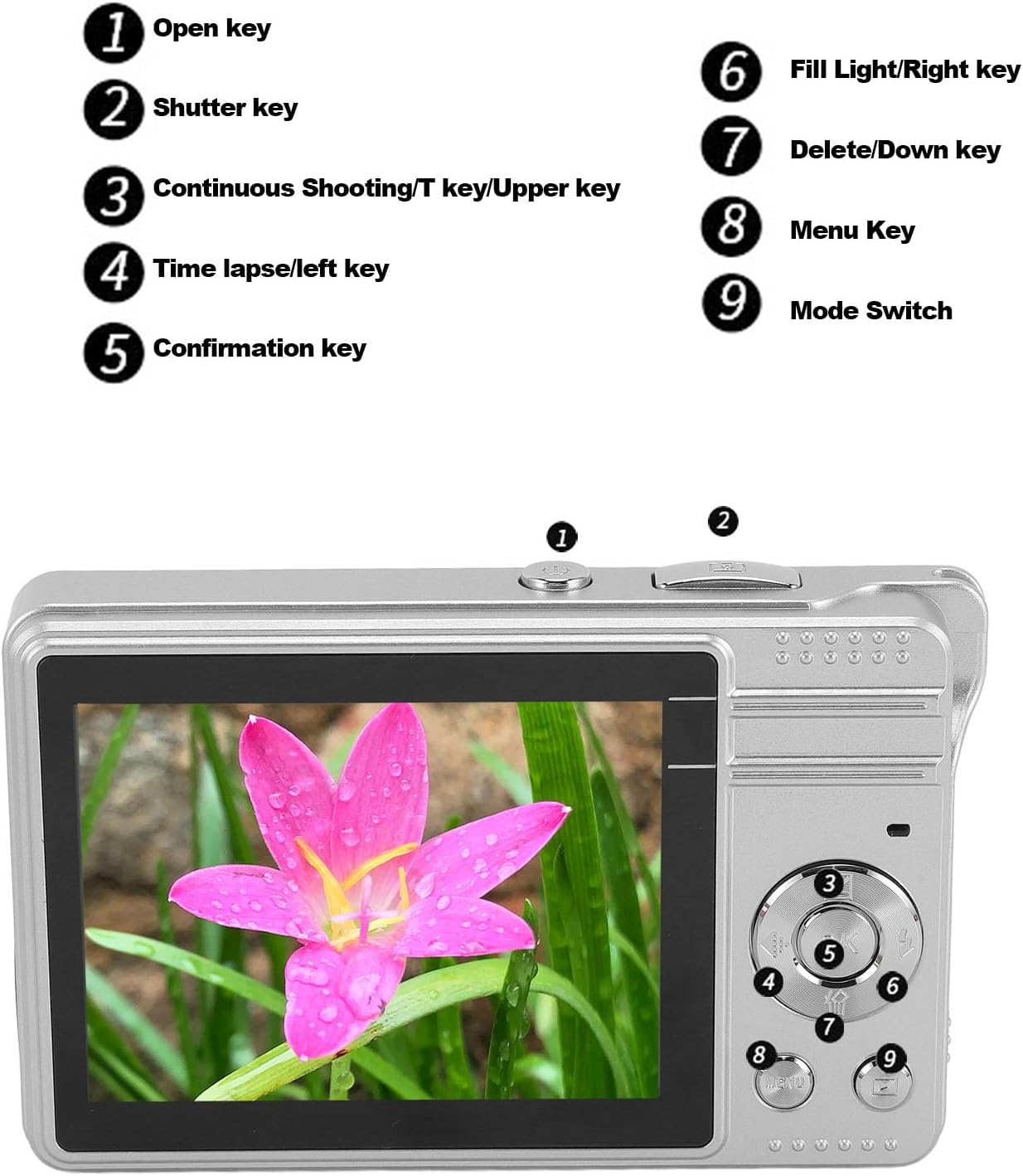

Image: A diagram illustrating the camera's buttons and their corresponding functions. Keyed numbers point to: 1. Open key, 2. Shutter key, 3. Continuous Shooting/T key/Upper key, 4. Time lapse/left key, 5. Confirmation key, 6. Fill Light/Right key, 7. Delete/Down key, 8. Menu Key, 9. Mode Switch.

• Iepenje kaai: Skeakelt de kamera oan of út.
• Shutter Key: Druk om in foto te meitsjen of fideo-opname te starten/stopjen.
• Continuous Shooting/T Key/Upper Key: Activates continuous shooting mode, controls zoom in (Telephoto), or navigates up in menus.
• Time Lapse/Left Key: Activates time-lapse mode or navigates left in menus.
• Confirmation Key: Befêstiget seleksjes yn menu's.
• Fill Light/Right Key: Toggles the LED fill light or navigates right in menus.
• Delete/Down Key: Deletes selected files or navigates down in menus.
• Menu kaai: Accesses the camera's settings menu.
• Mode Switch: Changes between photo, video, and playback modes.

Ofbylding: In close-up fan 'e kant view of the Zopsc Digital Camera, highlighting the USB port and the memory card slot (labeled TF for TransFlash/microSD).

4. Opsette

4.1 De batterij opladen

1. Locate the USB port on the side of the camera.
2. Connect the provided USB charging data cable to the camera's USB port.
3. Ferbine it oare ein fan 'e USB-kabel mei in USB-stroomadapter (net ynbegrepen) of de USB-poarte fan in kompjûter.
4. It oplaadindikatorljocht sil oangean. As it folslein opladen is, sil it ljocht feroarje of útgean.

Note: The camera has a built-in 750mAh lithium battery. Ensure the camera is fully charged before first use.

4.2 Ynstekken fan in ûnthâld card

The camera requires a small memory card (up to 64GB, not included) for storing photos and videos.

1. Locate the memory card slot next to the USB port.
2. Gently insert the memory card into the slot with the gold contacts facing the correct direction (refer to the diagram or markings on the camera).
3. Druk de kaart deryn oant er fêstklikt. Om te ferwiderjen, druk him wer deryn oant er derút springt.

Caution: Do not force the memory card. Incorrect insertion may damage the card or camera.

5. Bedriuwsinstruksjes

5.1 Yn-/útskeakelje

• Om yn te skeakeljen, hâld de knop yn Open Key.
• Hâld de knop yn om út te skeakeljen Open Key wer.

5.2 Foto's meitsje

1. Ensure the camera is in photo mode using the Mode Switch.
2. Frame your shot using the 2.8-inch TFT screen.
3. Druk op de Shutter Key halfway down to activate autofocus. The focus indicator will appear.
4. Druk op de Shutter Key fully down to capture the photo.

Image: The Zopsc Digital Camera in silver, showcasing its compact design and front lens. This camera is capable of capturing 50MP images.

5.3 Fideo's opnimme

1. Switch to video mode using the Mode Switch.
2. Druk op de Shutter Key to start recording. A recording indicator will appear on the screen.
3. Druk op de Shutter Key wer om de opname te stopjen.

5.4 Digitale zoom brûke

While in photo or video mode, use the Continuous Shooting/T Key/Upper Key to zoom in (Telephoto) and the Delete/Down Key to zoom out (Wide).

5.5 Activating LED Flashlight

In low light conditions, press the Fill Light/Right Key to turn the built-in LED flashlight on or off.

Image: A side-by-side comparison showing the effect of the built-in LED flash. The "Before" image is darker, while the "After" image, taken with the flash, is brighter and clearer, demonstrating its utility in low-light environments.

5.6 Auto Timer Function

To use the auto timer for self-portraits or group photos:

1. Yn fotomodus, druk op de Menu Key.
2. Navigate to the self-timer option using the arrow keys.
3. Select your desired delay (2s, 5s, or 10s) using the Befestigingskaai.
4. Druk op de Shutter Key. The camera will count down before taking the picture.

Image: The Zopsc Digital Camera held up, with the screen showing options for a 2-second, 5-second, or 10-second self-timer, indicating the camera's auto-timer functionality.

5.7 Wiedergabe Mode

Nei view jo makke foto's en fideo's:

1. Switch to playback mode using the Mode Switch.
2. Use the arrow keys to navigate through your files.
3. Druk op de Befestigingskaai nei view a video or a larger image.
4. Om te wiskjen a file, selektearje it en druk op de Delete/Down Key, befêstigje dan.

Image: The Zopsc Digital Camera's screen showing a grid of six different filter effects applied to an image, demonstrating the camera's ability to shoot in various styles.

6. Underhâld

6.1 De kamera skjinmeitsje

• Brûk in sêfte, droege doek om de kamerabody skjin te meitsjen.
• For the lens and screen, use a specialized lens cleaning cloth and solution. Avoid abrasive materials.
• Brûk gjin organyske oplosmiddels of sterke gemikaliën om de kamera skjin te meitsjen.

6.2 Opslach

• Bewarje de kamera op in koel, droech plak, fuort fan direkt sinneljocht en ekstreme temperatueren.
• If storing for an extended period, ensure the battery is partially charged (around 50%) and recharge it every few months to prevent deep discharge.
• Use the provided carrying bag to protect the camera from dust and scratches.

6.3 Batterij Soarch

• Foarkom it faak folslein ûntladen fan 'e batterij.
• Stel de batterij net bleat oan hege temperatueren of direkte waarmte.
• If the battery performance significantly degrades, it may need replacement by a qualified service center.

7. Probleemoplossing

8. Spesifikaasjes

9. Garânsje en stipe

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including warranty duration and coverage details.

For technical support, troubleshooting assistance, or warranty claims, please contact Zopsc customer service through the retailer where you purchased the product or visit the official Zopsc brand store online:

Visit Zopsc Brand Store

Please have your model number (Zopscqx4w6gnfpa-12) and purchase information ready when contacting support.
