Ufesa Katana Pro Electric Food Slicer

Ynlieding

Thank you for choosing the Ufesa Katana Pro Electric Food Slicer. This appliance is designed to provide precise and effortless slicing of various foods, including meats, cheeses, bread, and vegetables. To ensure safe and efficient operation, please read this instruction manual thoroughly before first use and keep it for future reference.

Wichtige Safety Ynstruksjes

WARSKÔGING: It net folgjen fan dizze feilichheidsynstruksjes kin liede ta elektryske skok, brân of swiere ferwûnings.

• Always unplug the appliance from the power outlet before assembly, disassembly, cleaning, or when not in use.
• Keep hands and utensils away from the slicing blade during operation. The blade is extremely sharp.
• Ensure the appliance is placed on a stable, flat, and dry surface before use.
• Do not operate the slicer with a damaged cord or plug, or if the appliance malfunctions or has been damaged in any manner.
• Dit apparaat is net bedoeld foar gebrûk troch persoanen (ynklusyf bern) mei fermindere fysike, sintúchlike of mentale kapasiteiten, of gebrek oan ûnderfining en kennis, útsein as se hawwe krigen tafersjoch of ynstruksje oangeande it brûken fan it apparaat troch in persoan ferantwurdlik foar harren feiligens.
• Never push food with your hand. Always use the food pusher provided.
• Dompel de motor ienheid net yn wetter of in oare floeistof.
• Foarkom kontakt mei bewegende dielen.
• Brûk allinne accessoires oanrikkemandearre troch de fabrikant.

Produkt oerview

Familiarize yourself with the components of your Ufesa Katana Pro Electric Food Slicer:

1. Stainless Steel Slicing Blade: The main cutting component, 190mm in diameter.
2. Thickness Regulator: Knob to adjust slice thickness from 0 to 20mm.
3. Itenferfier: Platform where food is placed for slicing.
4. Itendrukker: Transparent accessory to safely guide food towards the blade.
5. Power Switch: On/Off button, offering automatic or manual operation.
6. Non-slip fuotten: Suction cups on the base for stability during operation.
7. Feiligens knop: Ensures secure operation and blade removal.

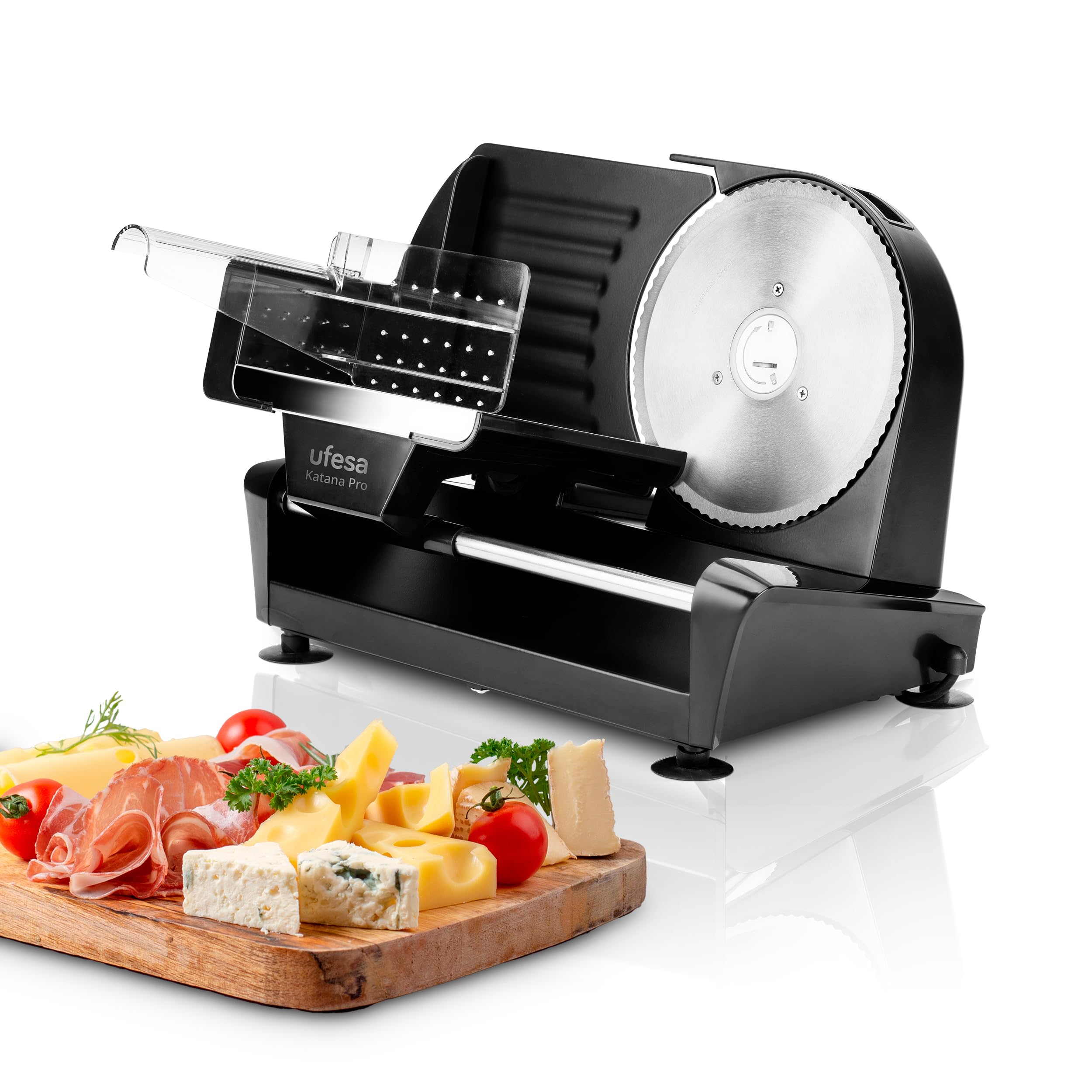

Ofbylding 1: Oerview of the Ufesa Katana Pro Electric Food Slicer.

Opsette

Before using your food slicer for the first time, follow these steps:

• Pak alle ûnderdielen út en ferwiderje alle ferpakkingsmaterialen.
• Place the slicer on a clean, dry, and stable countertop. Ensure the non-slip feet are securely gripping the surface.
• Wiskje de wichtichste ienheid mei adamp doek.
• Wash the removable blade, food carriage, and food pusher with warm, soapy water. Rinse thoroughly and dry completely before reassembling.
• Carefully reattach the blade by aligning it with the motor shaft and securing it with the safety button. Ensure it is firmly in place.

Operating Instructions

Folgje dizze stappen foar feilich en effektyf snijden:

1. Iten klearmeitsje: Ensure food items are suitable for slicing. For best results, chill soft meats and cheeses before slicing.
2. Dikte oanpasse: Use the thickness regulator knob to select your desired slice thickness, from 0 to 20mm. Turn the knob clockwise for thicker slices and counter-clockwise for thinner slices.
3. Plak iten: Place the food item firmly on the food carriage. Use the food pusher to hold the food securely against the guide plate and the blade.
4. Power On: Plug the slicer into a grounded electrical outlet. Press the power switch to turn on the appliance. The switch allows for automatic or manual operation.
5. Snij iten: While holding the food pusher, gently push the food carriage back and forth, guiding the food towards the rotating blade. Collect sliced food on a tray or plate.
6. Útskeakelje: Once slicing is complete, turn off the power switch and unplug the appliance.

Figure 2: Slicing ham with the Ufesa Katana Pro. The food pusher ensures safe handling.

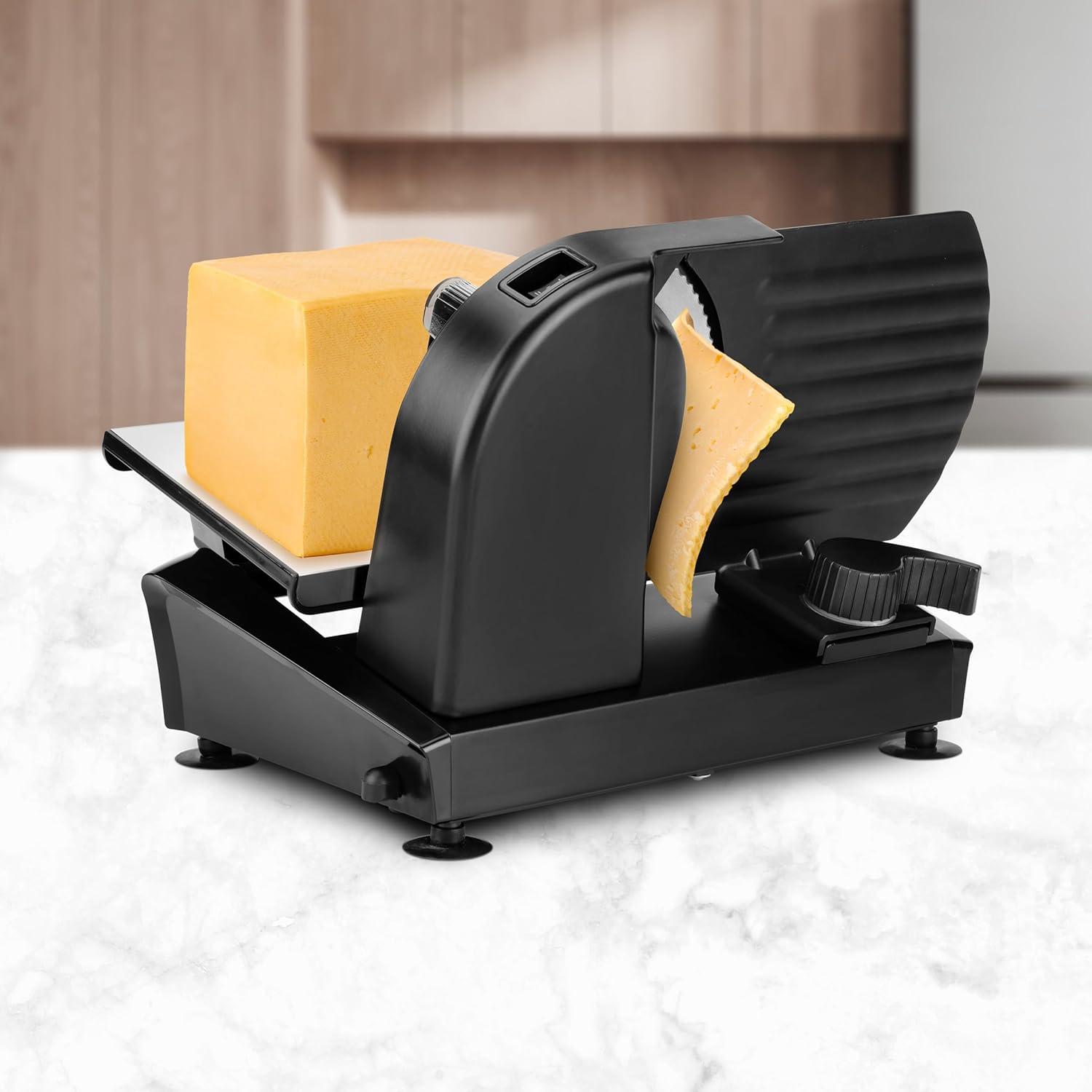

Figure 3: Slicing cheese with the Ufesa Katana Pro. The adjustable thickness allows for various slice sizes.

Figure 4: The thickness regulator allows for precise control over slice thickness, from very thin to up to 20mm.

Cleaning en ûnderhâld

Regular cleaning ensures the longevity and hygiene of your slicer. Always unplug the appliance before cleaning.

• Blade fuortsmite: Press the safety button and carefully remove the stainless steel blade.
• Hand Wash Components: Wash the removable blade, food carriage, and food pusher with warm, soapy water. Rinse thoroughly and dry immediately to prevent rust. The manufacturer recommends hand washing only for these components.
• Haadunit skjinmeitsje: Wipe the motor unit and other non-removable parts with a damp doek. Dompel de motor ienheid net yn wetter.
• Reassembly: Once all parts are dry, carefully reassemble the slicer. Ensure the blade is securely fastened.
• Opslach: Bewarje de snijder op in skjin, droech plak.

Troubleshooting

If you encounter issues with your Ufesa Katana Pro, refer to the following common problems and solutions:

• Slicer giet net oan:
  • Kontrolearje oft it netsnoer goed yn in wurkjend stopkontakt sit.
  • Soargje derfoar dat de oan/út-skeakel yn 'e 'Oan'-posysje stiet.
• Blade is not slicing evenly:
  • Verify that the thickness regulator is set correctly and locked in place.
  • Ensure the food item is firmly pressed against the guide plate and held by the food pusher.
  • The blade might be dull. Contact customer support for replacement options.
• Food is difficult to slice:
  • Ensure the food item is properly chilled. Softer foods slice better when firm.
  • Do not overload the slicer. Slice smaller portions if necessary.
• Oermjittige lûd of trilling:
  • Check if the blade is correctly installed and secured.
  • Ensure the slicer is on a stable and level surface.

If the problem persists after checking these points, please contact Ufesa customer support.

Spesifikaasjes

• Model: Katana Pro
• Krêft: 200W
• Blade Materiaal: Rustfrij stiel
• Blade Diameter: 190 mm
• Ferstelbere slice dikte: 0-20 mm
• Ofmjittings (L x B x H): 29 x 26 x 40 sm
• Gewicht: 4.1 kg
• Spesjale eigenskippen: Adjustable thickness, removable blade, non-slip feet, safety switch, automatic operation.
• Soarch ynstruksjes: Hand wash only for removable parts.

Garânsje en stipe

The Ufesa Katana Pro Electric Food Slicer comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions. For technical support, spare parts, or any inquiries not covered in this manual, please visit the official Ufesa website of nim kontakt op mei harren klanteservice ôfdieling.

Ufesa Website: Ufesa Official Store
