1. Ynlieding
The MiBOXER TRI-PW 500W AC Triac Dimmer is designed for precise control of lighting systems in residential and commercial environments. This device integrates WiFi and 2.4GHz technology, allowing for remote operation via compatible applications and MiBOXER remote controls. It supports triac dimming, ensuring compatibility with a wide range of lighting fixtures, including LED, halogen, and incandescent lights, for smooth and consistent dimming from full brightness to a soft glow.

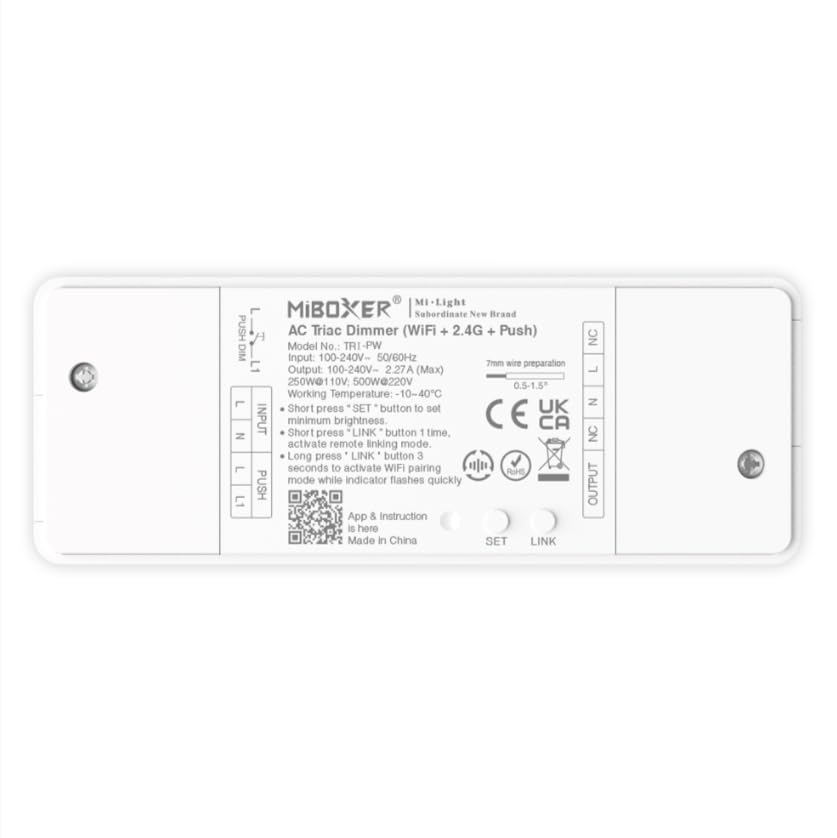

Ofbylding 1.1: oerview of the MiBOXER TRI-PW 500W AC Triac Dimmer unit.
2. Safety Information
- Elektryske ynstallaasje: Ynstallaasje moat útfierd wurde troch in kwalifisearre elektricien yn oerienstimming mei lokale elektryske koades en regeljouwing.
- Power Disconnection: Always disconnect power at the circuit breaker before installing or servicing the dimmer.
- Voltage Kompatibiliteit: Soargje foar de ynfier voltage matches the dimmer's specifications (100-240V AC).
- Laadkapasiteit: Do not exceed the maximum load capacity of 500W. Overloading can cause damage or fire.
- Allinnich gebrûk binnen: This device is intended for indoor use in dry locations. Avoid exposure to moisture or extreme temperatures.
- Kompatibiliteit: Use only with compatible dimmable lighting fixtures (LED, halogen, incandescent).
3. Package Ynhâld
Kontrolearje oft alle ûnderdielen yn it pakket oanwêzich binne:
- MiBOXER TRI-PW 500W AC Triac Dimmer Unit
- User Manual (may be included as a separate document)
Image 3.1: MiBOXER TRI-PW Dimmer unit shown with its packaging and a user manual.
4. Produktfunksjes
- Powerful 500W Capacity: Supports high-power loads, suitable for various lighting fixtures.
- Triac Dimming Technology: Provides flicker-free dimming for LED, halogen, and incandescent lights.
- WiFi & 2.4GHz Control: Integrates with WiFi and MiBOXER 2.4GHz systems for smartphone or remote control.
- Push Control Compatibility: Allows for quick, on-site dimming adjustments via a push button.
- App & stimkontrôle: Compatible with major smart home platforms for app-based and voice command control.
- Unthâldfunksje: Retains previous lighting settings after power cycles.
5. Spesifikaasjes
| Eigenskip | Detail |
|---|---|
| Merk | MiBOXER |
| Model Namme | TRI-PW |
| Special Feature | 500W AC Triac Dimmer |
| Frekwinsje Band Klasse | Single-Band |
| Triedleaze kommunikaasje standert | 802.11b |
| Kompatibele apparaten | Stypje PUSH dimming |
| Oanrikkemandearre Uses | Home lighting systems |
| Konnektivität Technology | Wi-Fi |
| Smart Home Kompatibilität | Smart Home Compatible (e.g., Amazon Alexa, Google Assistant) |
| Dekking | LED, halogen, incandescent, high-power loads |
| Frekwinsje | 2.4 GHz |
| Ofmjittings (sawat) | 117 mm (L) x 45 mm (B) x 24 mm (H) |

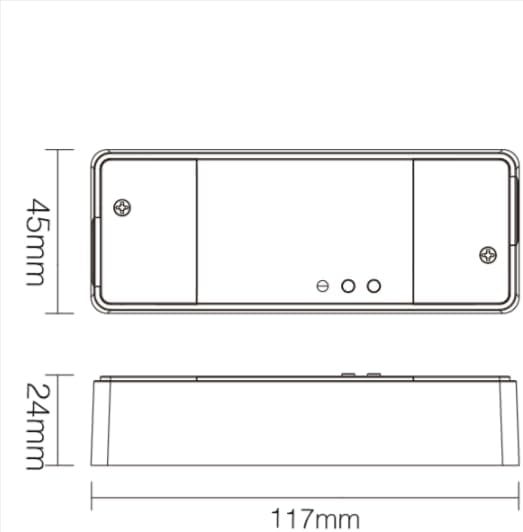

Image 5.1: Technical drawing showing the approximate dimensions of the TRI-PW dimmer.
Image 5.2: Packaging dimensions for the MiBOXER TRI-PW dimmer.
6. Opset en ynstallaasje
Belangryk: Ensure power is disconnected at the circuit breaker before beginning installation.
Wiring Diagram
The MiBOXER TRI-PW dimmer supports two primary wiring methods for integration with a push switch. Both methods are suitable for triac dimming LED lights, traditional filament lamps, en halogeen lamps.
Image 6.1: Wiring diagrams for connecting the MiBOXER TRI-PW dimmer with a push switch.
Method 1: Single-Wire Push Switch Connection
- Connect the Live (L) and Neutral (N) input wires from your power supply (100-240V~) to the corresponding 'INPUT' terminals on the dimmer.
- Connect the Live (L) and Neutral (N) output wires to your lighting fixture (100-240V~) from the 'OUTPUT' terminals.
- Connect one wire from the push switch to the 'PUSH' terminal on the dimmer.
- Connect the other wire from the push switch to the Live (L) input terminal.
Method 2: Two-Wire Push Switch Connection
- Connect the Live (L) and Neutral (N) input wires from your power supply (100-240V~) to the corresponding 'INPUT' terminals on the dimmer.
- Connect the Live (L) and Neutral (N) output wires to your lighting fixture (100-240V~) from the 'OUTPUT' terminals.
- Connect the two wires from the push switch directly to the 'PUSH' terminals on the dimmer.
After wiring, secure the dimmer in a suitable electrical box or enclosure. Restore power at the circuit breaker.
7. Bedriuwsinstruksjes
7.1. Push Switch Control
- Koarte parse: Turn the lights ON or OFF.
- Lange parse: Adjust the brightness level. Release the button to set the desired brightness.
7.2. WiFi-app-kontrôle
The TRI-PW dimmer supports control via a smart app (e.g., Tuya Smart app). No additional 2.4G gateway is required for app control.
- Download the compatible smart home app from your device's app store.
- Registrearje of oanmelde by jo akkount.
- Put the dimmer into pairing mode (refer to the app's instructions or the dimmer's specific pairing procedure, usually involving a long press of the 'SET' button or power cycling).
- Follow the in-app instructions to add the device to your network.
- Once connected, you can control the dimmer's ON/OFF state and brightness from your smartphone.
Ofbylding 7.1: Eks.ample of controlling the dimmer using a smartphone application.
7.3. 2.4GHz ôfstânsbetsjinning
The dimmer can be paired with MiBOXER 2.4GHz remote controls for direct wireless control.
- Ensure the dimmer is powered on.
- Refer to your MiBOXER 2.4GHz remote control's manual for specific pairing instructions. Typically, this involves pressing a "Link" or "Pair" button on the remote within a few seconds of powering on the dimmer or pressing the dimmer's 'SET' button.
- A successful pairing is usually indicated by the connected light flashing.
7.4. Stimkontrôle (Alexa/Google Assistant)
The TRI-PW dimmer is compatible with smart home voice assistants like Amazon Alexa and Google Assistant when integrated through a compatible smart home app.
- Ensure your dimmer is successfully connected to the smart home app (e.g., Tuya Smart).
- Iepenje jo Amazon Alexa- of Google Home-app.
- Enable the skill or service for the smart home app you are using (e.g., "Tuya Smart" skill).
- Discover devices. Your dimmer should appear in the list.
- Assign a name to your dimmer (e.g., "Living Room Light").
- You can now control your light using voice commands, such as "Alexa, turn on Living Room Light" or "Hey Google, dim Living Room Light to 50%."
Image 7.2: The dimmer is compatible with voice control platforms like Amazon Alexa and Google Assistant.
8. Underhâld
- Reiniging: Disconnect power before cleaning. Wipe the dimmer with a soft, dry cloth. Do not use liquid cleaners or aerosols.
- Ynspeksje: Kontrolearje de bedrading periodyk op strakheid en tekens fan slijtage of skea.
- Firmware -updates: If available, check the smart home app for firmware updates to ensure optimal performance and security.
9. Probleemoplossing
| Probleem | Mooglike oarsaak | Oplossing |
|---|---|---|
| Ljochten geane net oan. | No power, incorrect wiring, faulty bulb, dimmer not paired. | Check circuit breaker. Verify wiring according to diagrams. Test bulb. Re-pair dimmer with app/remote. |
| Ljochten flikkerje of bromme. | Incompatible bulb, overloaded circuit, loose wiring. | Ensure bulbs are dimmable and compatible with triac dimmers. Reduce load. Check wiring connections. |
| Dimmer not responding to app/remote. | Dimmer out of range, WiFi issue, not paired. | Ensure dimmer is within WiFi/2.4GHz range. Check WiFi router. Re-pair dimmer with app/remote. |
| Kin gjin ferbining meitsje mei WiFi. | Incorrect WiFi password, 5GHz network, dimmer not in pairing mode. | Verify WiFi password. Ensure you are connecting to a 2.4GHz network. Put dimmer into WiFi pairing mode. |
10. Garânsje en stipe
This MiBOXER TRI-PW dimmer comes with a 2-jierrige garânsje út de datum fan oankeap. Dizze garânsje dekt defekten yn materialen en fakmanskip ûnder normaal gebrûk.
The warranty does not cover damage caused by improper installation, misuse, unauthorized modifications, or acts of nature.
For technical support or warranty claims, please contact your retailer or the manufacturer directly. Please have your purchase receipt and product model number (TRI-PW) available when contacting support.
Foar mear ynformaasje kinne jo de MiBOXER Store on Amazon.
