Wothfav Smart Plug ETK-07: 16A Timer & Energy Monitoring

1. Produkt Overview

The Wothfav Smart Plug ETK-07 is designed to enhance your smart home experience by providing intelligent control over your electrical appliances. This device features energy monitoring, programmable timers, and a countdown function, allowing for efficient energy management and increased convenience.

Wichtige funksjes omfetsje:

• 16A Capacity: Supports a maximum current of 16A and a maximum power of 3600W.
• Enerzjymonitoring: Real-time tracking of connected device power consumption.
• Programmable Timers: Set up to 19 adjustable time programs for automated on/off cycles.
• Countdown Funksje: Automatically turns off devices after a set duration, preventing overcharging.

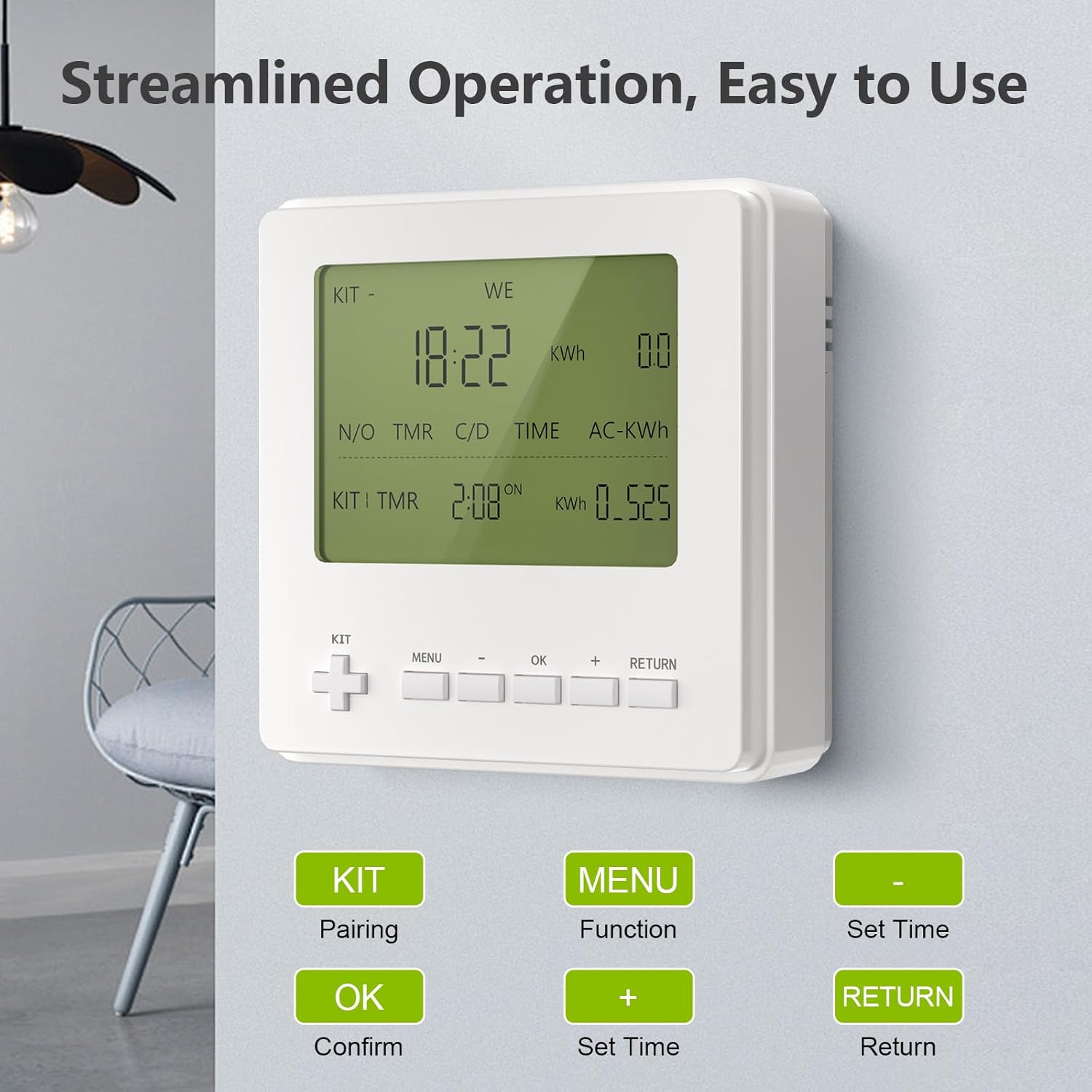

• Direct Controller Connection: Connects directly to a dedicated controller via RF signals for stable operation (up to 30m range), reducing reliance on Wi-Fi for basic control.
• Feiligensfunksjes: Equipped with a child safety mechanism and constructed from fireproof PC material.

The smart plug is suitable for various applications, including charging electric vehicles, mobile phones, and other electronic products, as well as controlling routers, kettles, aquariums, and lawn irrigation systems.

Image 1: Wothfav Smart Plug ETK-07

2. Setup Ynstruksjes

2.1. Preparing for Connection

Before connecting your smart plug, ensure you have the following:

• The Wothfav Smart Plug ETK-07.
• A smartphone with the "Smart Life" application installed.
• A 2.4GHz Wi-Fi network. (Note: 5GHz Wi-Fi is not supported for initial setup.)

2.2. Connecting the Smart Plug with the App

1. Connect your smartphone to your 2.4GHz Wi-Fi network. Ensure Bluetooth is also enabled.
2. Stek de tûke stekker yn in stopkontakt.
3. Open the "Smart Life" application on your smartphone.
4. Tap the "+" icon in the upper right corner of the app to add a device.
5. The app may automatically detect the smart plug. If so, select it and follow the prompts to enter your Wi-Fi password.
6. If not automatically detected, select "Add Device" and then choose "Plug (Wi-Fi)" under the "Electrical" or "Socket" category.
7. Follow the on-screen instructions to reset the device (usually by holding the power button for 5 seconds until the indicator light blinks rapidly).
8. Confirm the indicator light's blinking status in the app and proceed to enter your Wi-Fi password.
9. Wait for the configuration to complete. Once successful, you can rename the smart plug for easy identification (e.g., "Kitchen Lamp," "Bedroom Fan").

Image 2: Smart Plug controlling devices in various rooms

2.3. Video Guide: Connecting the Smart Plug with the App

Video 1: This video demonstrates the process of connecting the Wothfav Smart Plug to the Smart Life application, including steps for automatic and manual device addition and Wi-Fi password entry.

3. Bedriuwsinstruksjes

3.1. Manual Control

You can manually turn the smart plug on or off by pressing the physical On/Off button located on the device.

3.2. App-ôfstânsbetsjinning

Once connected to the "Smart Life" app, you can control the smart plug remotely from anywhere with an internet connection:

• On/Off Toggle: Tap the power icon in the app to instantly turn the connected appliance on or off.
• Planning: Set specific times for the plug to turn on or off. You can create up to 19 different schedules to automate your devices.
• Countdown timer: Utilize the countdown function to automatically power off a device after a desired time period. This is useful for charging devices or running appliances for a limited duration.

Image 3: Demonstrates timer and countdown functions for a router and a bedside lamp.

3.3. Enerzjy Monitoring

The app provides real-time energy consumption data for devices connected to the smart plug. This allows you to:

• Monitor current, power, and voltage.
• View historical power consumption logs.
• Identify energy-wasting appliances and optimize usage to save energy.

Image 4: Illustrates the energy consumption monitoring feature with a graph showing daily power usage.

4. Underhâld

To ensure the longevity and optimal performance of your Wothfav Smart Plug, follow these general maintenance guidelines:

• Reiniging: Doch de tûke stekker los fan it stopkontakt foardat jo it skjinmeitsje. Brûk in sêfte, droege doek om de bûtenkant ôf te feegjen. Brûk gjin floeibere skjinmakkers of skurende materialen.
• Miljeu: Avoid exposing the smart plug to extreme temperatures, direct sunlight, high humidity, or dusty environments. The operating temperature range is -10℃ to 45℃.
• Opslach: As jo ​​it apparaat foar in langere perioade opslaan, lûk de stekker derút en bewarje it op in koel, droech plak.

5. Probleemoplossing

If you encounter issues with your Wothfav Smart Plug, refer to the following common troubleshooting steps:

• Apparaat makket gjin ferbining mei Wi-Fi:
  • Ensure your Wi-Fi network is 2.4GHz. The smart plug does not support 5GHz networks.
  • Check if your Wi-Fi signal is strong enough where the plug is located.
  • Try resetting the smart plug by holding the power button for 5 seconds until the indicator light blinks rapidly, then attempt to reconnect via the app.
  • Start jo Wi-Fi-router op 'e nij.
• App-kontrôle reagearret net:
  • Verify that your smartphone has an active internet connection.
  • Check if the smart plug is still connected to your Wi-Fi network (indicator light status).
  • Close and reopen the "Smart Life" app.
  • If the issue persists, try unplugging the smart plug for 10 seconds and then plugging it back in.
• Energy Monitoring Data Incorrect:
  • Ensure the appliance connected to the smart plug is functioning correctly.
  • Check for any app updates for "Smart Life."

For further assistance, please refer to the "Smart Life" app's help section or contact Wothfav customer support.

6. Spesifikaasjes

7. Safety Information

The Wothfav Smart Plug is designed with user safety in mind:

• Bernefeiligens: Features a built-in child safety mechanism to prevent accidental access to live parts.
• Brânbestindich materiaal: Constructed from high-quality fireproof PC material to minimize fire risks.
• Overload beskerming: The 16A maximum current rating helps prevent overloading when used within specified limits.

Always ensure the smart plug is used in accordance with local electrical safety standards. Do not disassemble or modify the device.

8. Garânsje en stipe

For information regarding warranty coverage, terms, and conditions, please refer to the documentation provided with your purchase or visit the official Wothfav website.

If you require technical support, have questions about product functionality, or need assistance with troubleshooting, please contact Wothfav customer service through their official channels. Details can typically be found on the product packaging or the manufacturer's website.
