LIORQUE Wireless Weather Station YGH6208 User Manual

Ynlieding

Thank you for choosing the LIORQUE Wireless Weather Station YGH6208. This device provides accurate indoor and outdoor temperature and humidity readings, weather forecasts, and features a DCF radio-controlled clock with alarm functions. This manual will guide you through the setup, operation, and maintenance of your weather station.

Pakketynhâld

1 x LIORQUE Wireless Weather Station (Main Unit)
1 x Outdoor Sensor
3 x AAA Batteries (for Main Unit)
2 x AAA Batteries (for Outdoor Sensor)
1 x brûkershantlieding (dit dokumint)

Produkt oerview

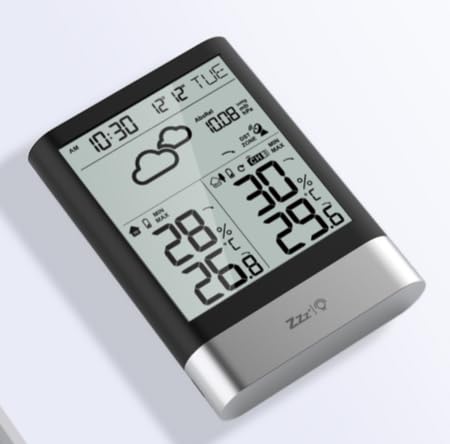

Ofbylding 1: LIORQUE Wireless Weather Station Main Unit. This image shows the front view of the main display unit, highlighting its LCD screen and compact design.

Main Unit Features:

4.3-inch LCD screen with backlight
Indoor temperatuer en vochtigheid werjefte
Bûtentemperatuer en fochtigens werjaan
Ikoanen foar waarberjocht
DCF radio-controlled clock with manual setting option
Double alarm clock with snooze function
Calendar and day of the week display (7 languages)
Max/Min temperature and humidity records
Air pressure display and weather trend
12/24 oere tiid werjaan

Outdoor Sensor Features:

Wireless transmission up to 100m (open area)
Meting fan temperatuer en vochtigheid
Supports hanging or standing placement
Data updated every 30 seconds
Supports up to 3 sensors (one included)

Opsette

1. Batterij Ynstallaasje

Outdoor Sensor: Open the battery compartment cover on the back of the outdoor sensor. Insert 2 x AAA batteries, ensuring correct polarity (+/-). Close the cover.
Haad ienheid: Open the battery compartment cover on the back of the main unit. Insert 3 x AAA batteries, ensuring correct polarity (+/-). Close the cover.
The main unit will power on and display indoor readings.

2. Sensorkoppeling

After installing batteries in both units, the main unit will automatically search for the outdoor sensor. The outdoor temperature and humidity should appear on the main unit's display within a few minutes. If the outdoor readings do not appear:

Ensure both units are within range (up to 100m in open air).
Press the "TX" button inside the outdoor sensor's battery compartment to manually send a signal.
On the main unit, press and hold the "CHANNEL" button to initiate a manual search for the sensor.

3. Begjinynstellingen (tiid, datum, ienheden)

The weather station will attempt to synchronize with the DCF radio signal for automatic time setting. This may take several hours, especially in areas with weak signals. You can manually set the time and date if needed.

Manuele tiidynstelling: Press and hold the "MODE" button to enter time setting mode. Use the "UP" and "DOWN" buttons to adjust values and "MODE" to confirm and move to the next setting (e.g., 12/24 hour format, hour, minute, year, month, day, language for day of week).
Temperatuer ienheden: Press the "°C/°F" button to switch between Celsius and Fahrenheit.
Air Pressure Units: Press the "BARO" button to cycle through air pressure units (e.g., hPa, inHg).

Operating Instructions

Display ynformaasje

The 4.3-inch LCD screen displays various information:

Tiid en datum: Current time, date, and day of the week.
Binnenlêzingen: Current indoor temperature and humidity.
Outdoor Readings: Current outdoor temperature and humidity from the connected sensor.
Waarberjocht: Ikoanen dy't foarseine waarsomstannichheden oanjaan (bygelyks, sinnich, bewolkt, reinich).
Loftdruk: Current atmospheric pressure and trend.
Efterljochting: The screen backlight activates with a light touch and returns to normal brightness after 10 seconds to conserve battery.

Wekker Funksje

The weather station features a double alarm clock with snooze.

Alarm ynstelle: Druk op de knop "ALARM" om view Alarm 1. Press "ALARM" again to view Alarm 2. Hold "ALARM" to enter alarm setting mode. Use "UP" and "DOWN" to adjust the hour and minute, and "ALARM" to confirm.
Alarms aktivearje/deaktivearje: Wylst viewing an alarm, press "UP" to toggle it on or off. An alarm icon will appear when active.
Snooze Funksje: When an alarm sounds, press any button (except "ALARM OFF") to activate snooze. The alarm will sound again after a set interval. Press "ALARM OFF" to stop the alarm completely.

Maksimum en Minimum Records

The weather station records the maximum and minimum indoor/outdoor temperature and humidity values.

Press the "MAX/MIN" button once to display maximum recorded values.
Press "MAX/MIN" again to display minimum recorded values.
Press "MAX/MIN" a third time to return to current readings.
To clear records, hold the "MAX/MIN" button while viewde records opnimme.

Ûnderhâld

Batterij ferfanging: Replace batteries in both the main unit and outdoor sensor when the low battery indicator appears on the display. Always replace all batteries at the same time.
Reiniging: Clean the display and unit surfaces with a soft, damp doek. Brûk gjin abrasive skjinmakkers of solvents.
Outdoor sensor pleatsing: For optimal performance and longevity, install the outdoor sensor in a shaded area, protected from direct sunlight and rain. Ensure it is within the 100m wireless range of the main unit.

Troubleshooting

Probleem	Mooglike oplossing
No outdoor temperature/humidity display.	Check if batteries are correctly installed in the outdoor sensor. Press the "TX" button on the outdoor sensor. Druk op de knop "CHANNEL" op it haadapparaat en hâld dy yndrukt om de ferbining opnij te meitsjen. Ensure the sensor is within range and not blocked by thick walls or metal objects.
Ferkearde tiidswerjefte.	Wait for DCF signal synchronization (can take several hours). Manually set the time (refer to "Initial Settings" section). Ensure the main unit is not near sources of interference (e.g., TVs, computers).
It skerm is dim of leech.	Ferfange batterijen yn it haadapparaat. Soargje derfoar dat batterijen mei de juste polariteit ynfoege binne.
De waarsfoarsizzing liket ûnkrekt.	The weather forecast is based on atmospheric pressure changes and is an estimation. It may not always match local weather services. Allow 7-14 days for the station to learn local pressure patterns for more accurate forecasts.

Spesifikaasjes

Model: YGH6208
Merk: LIORQUE
Display Type: LCD
Stromboarne (haadunit): 3 x AAA-batterijen (ynbegrepen)
Stromboarne (bûtensensor): 2 x AAA-batterijen (ynbegrepen)
Wireless berik: Oant 100m (iepen gebiet)
Temperatuer krektens: ±0.5 °C
Sensor technology: Funk (Wireless)
Spesjale eigenskippen: DCF Radio Clock, Alarm, Snooze, Weather Forecast, Max/Min Records, Backlight
Ynbegrepen komponinten: Weather Station Main Unit, Outdoor Sensor

Garânsje en stipe

LIORQUE products are designed for reliability and performance. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official LIORQUE webside. Bewarje jo bewiis fan oankeap foar garânsjeclaims.
