Ynlieding
The OLIGHT BatonUltra is a high-performance Everyday Carry (EDC) flashlight designed for durability, versatility, and powerful illumination. Featuring an 1800-lumen output and a 300-meter beam distance, it is crafted from Olight's exclusive O-aluminum alloy for exceptional toughness. This manual provides essential information for safe and effective use of your BatonUltra flashlight.
Wat is yn 'e doaze
- BatonUltra × 1
- L Stand × 1
- MCC3 Magnetic Charging Cable × 1
- Meidogger Hânlieding × 1
Opsette
Initial Battery Preparation
Before first use, unscrew the body of the flashlight and remove the insulating film from the battery. Ensure the positive end of the battery faces the flashlight head when reinserting.
Image: The OLIGHT BatonUltra flashlight with its body unscrewed, revealing the battery and the insulating film that must be removed before first use.
De zaklamp opladen
Fully charge the BatonUltra before its first use. The flashlight offers two convenient charging methods:
- MCC3 Magnetic Charging: Attach the MCC3 magnetic charging cable to the magnetic tailcap of the flashlight. The indicator on the cable will show charging status.
- USB-C opladen: Rotate the tailcap counter-clockwise to reveal the hidden USB-C port. Connect a USB-C cable (not included) to charge the device.
Image: The OLIGHT BatonUltra demonstrating its dual charging capabilities, with the MCC3 magnetic cable attached to the tailcap and the hidden USB-C port revealed by twisting the tailcap.
Video: An official OLIGHT video showcasing the 1800-lumen BatonUltra EDC Flashlight, highlighting its compact design, O-aluminum construction, and dual charging features.
Operating Instructions
Operaasje fan 'e sydskeakel
- ON/OFF: Single press the side switch to turn the flashlight ON/OFF.
- Feroarje helderheid: When ON, press and hold the side switch to cycle through Low, Medium, and High modes. Release to select.
- Moanneljochtmodus: When OFF, press and hold the side switch for more than 1 second to activate moonlight mode.
- Turbo modus: Quick double press the side switch.
- Strobe modus: Quick triple press the side switch.
- Lockout / Untskoattelje: When OFF, press and hold the side switch for 1 second to enter lockout mode. The indicator will show a lock icon. To unlock, press and hold the side switch for 2 seconds.
Tail Switch Operaasje
The magnetic tail switch provides instant access to specific modes:
- ON/OFF: Press the tail button to turn the flashlight ON/OFF (High mode by default).
- Turbo modus: Quick double press the tail button.
- Momenteel oan: Press and hold the tail button to keep Turbo mode active. Release to turn it off.
Image: Close-up of the OLIGHT BatonUltra's side switch, displaying micro-perforated indicators for current brightness level and battery status, along with a lockout icon.
Key Features

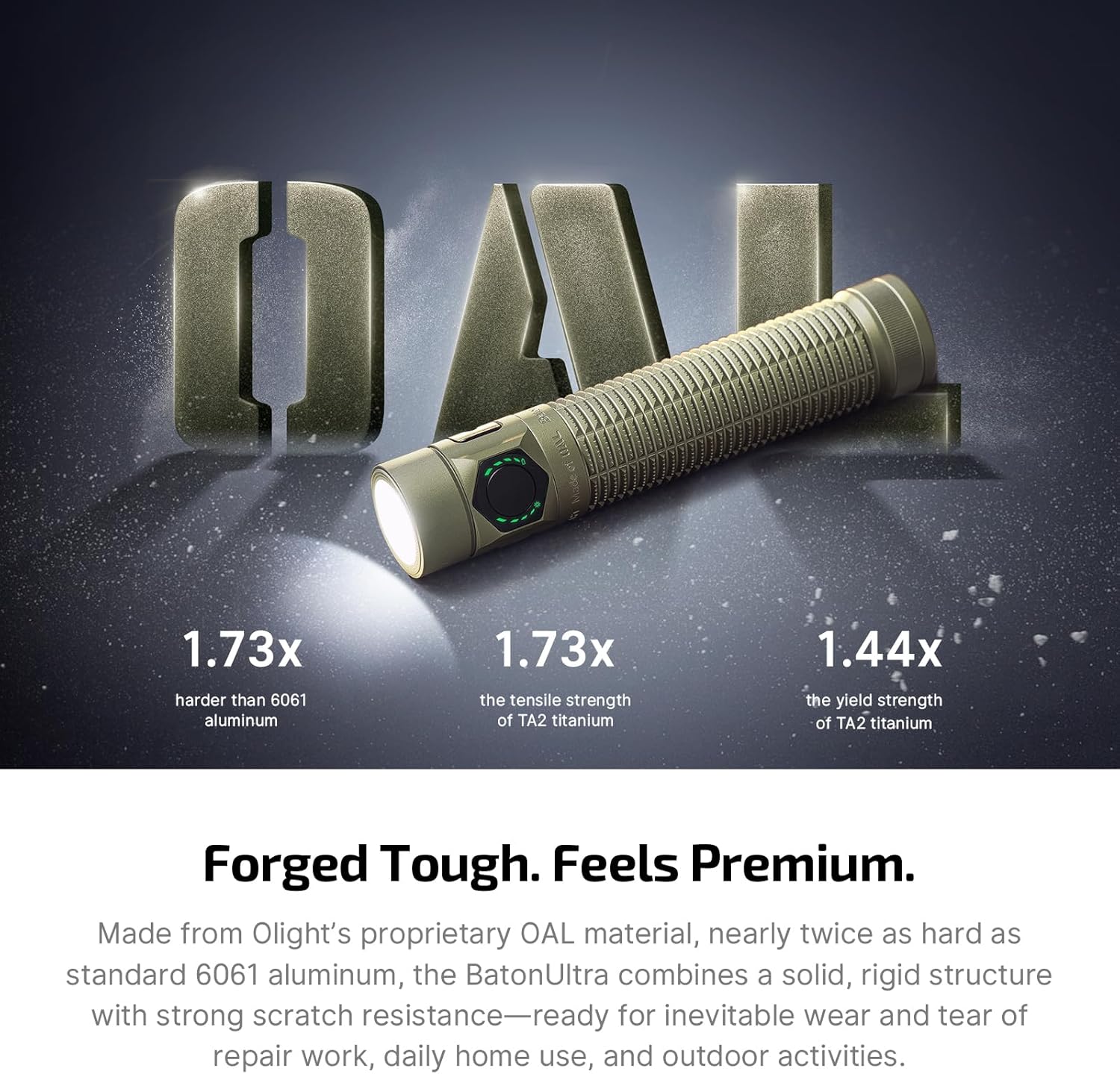

Olight's Proprietary O-Aluminum Alloy (OAL)
The BatonUltra is constructed from Olight's exclusive OAL material, which is 1.73 times harder than standard 6061 aluminum. This alloy provides superior scratch resistance and a robust, rigid structure, making the flashlight highly durable for everyday use, work, and outdoor activities.
Image: A graphic detailing the superior hardness, yield strength, and tensile strength of Olight's OAL material compared to standard aluminum and TA2 titanium.
EIP 1 LED for Pure White Beam
Equipped with Olight's self-developed EIP 1 LED, the BatonUltra delivers up to 1800 lumens with exceptional color accuracy and no green tint. This LED provides a crystal clear, pure white beam, ideal for tasks where true color representation is crucial.
Image: A diagram illustrating the internal structure and technology of Olight's EIP 1 LED, emphasizing its non-uniform electrode design for higher luminous efficiency.
Dual Switches for Instant Access
The BatonUltra features both a metal side switch and a magnetic tail switch. The side switch controls 5 brightness levels and strobe mode, while the tail switch offers quick access to High, Turbo, or Momentary-On modes, providing versatile control for various situations.
Image: A composite image showing a user activating the side switch while walking a dog and another user activating the tail switch to illuminate a car engine bay.
Lang duorjende krêft
Powered by a high-capacity 3500 mAh battery, the BatonUltra delivers impressive runtimes. In Moonlight mode, the flashlight can operate for up to 100 days on a single charge, ensuring long-lasting illumination when needed.
Image: A graphic illustrating the 3500 mAh battery capacity and estimated runtimes for High (3+ hours), Medium (18+ hours), and Low (6+ days) modes.
Kompakt en draachber ûntwerp
At just 113 mm (4.45 inches) long and weighing 115 g (4.06 oz), the BatonUltra is perfectly sized for comfortable handling and easy pocket carry. Its precision knurling ensures a solid and comfortable grip.
Image: A collage of images demonstrating the compact size of the OLIGHT BatonUltra, showing it clipped to a pocket, backpack strap, illuminating a car engine, and held in a hand next to a folding knife.
Spesifikaasjes
| Eigenskip | Detail |
|---|---|
| Model | BatonUltra |
| Max Lumens | 1800 lumen |
| Maksimale strielôfstân | 300 meter |
| Max Light Intensity | 22,500 candela |
| Materiaal | Olight's Proprietary O-Aluminum Alloy |
| Wetter Resistance | IPX8 (wetterdicht) |
| Drop Impact Resistance | 2 meter |
| Batterij Type | Lithium Polymer (3500 mAh) |
| Opladen Metoade | MCC3 Magnetic Charging, USB-C |
| Ofmjittings (L x B x H) | 113 mm x 23 mm x 23 mm (4.45" x 0.9" x 0.9") |
| Gewicht | 115 g (4.06 oz) |
| Operating Temperatuer | 0 °C oant 45 °C |
Ûnderhâld
To ensure optimal performance and longevity of your OLIGHT BatonUltra, regular maintenance is recommended:
- Reiniging: Periodically clean the threads and O-rings with a clean cloth. Apply a thin layer of silicone grease to the O-rings to maintain water resistance.
- Batterij soarch: Store the flashlight with a partially charged battery if not in use for extended periods. Avoid fully discharging the battery to prolong its lifespan.
- Kontaktpunten: Keep the battery contact points clean to ensure reliable operation.
Troubleshooting
If your BatonUltra flashlight is not functioning as expected, consider the following common issues:
- Flashlight not turning ON: Ensure the insulating film has been removed from the battery. Check if the battery is inserted correctly with the positive end facing the head. The battery might be depleted; try charging it.
- Intermitterende operaasje: Clean the battery contact points and threads. Ensure the battery is fully charged and properly inserted.
- Fermindere helderheid of koarte rintiid: De batterij kin leech wêze; laad him folslein op.
- Wetter yngong: Ensure the tailcap is fully tightened and the USB-C port cover is properly sealed by twisting the tailcap clockwise. Check O-rings for damage and replace if necessary.
If issues persist, please contact OLIGHT customer support for assistance.
Garânsje en stipe
The OLIGHT BatonUltra EDC Flashlight comes with a Lifetime Warranty, ensuring peace of mind for your purchase. For any warranty claims, technical support, or product inquiries, please visit the official OLIGHT webside of nim direkt kontakt op mei harren klanttsjinst. Bewarje jo oankeapbewiis foar garânsjevalidaasje.
